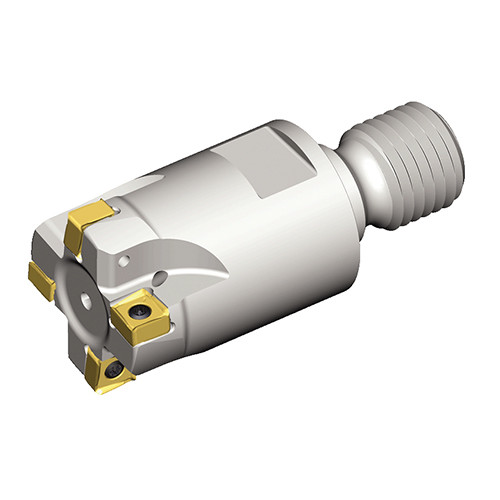

8D-TE90-540-M16-07

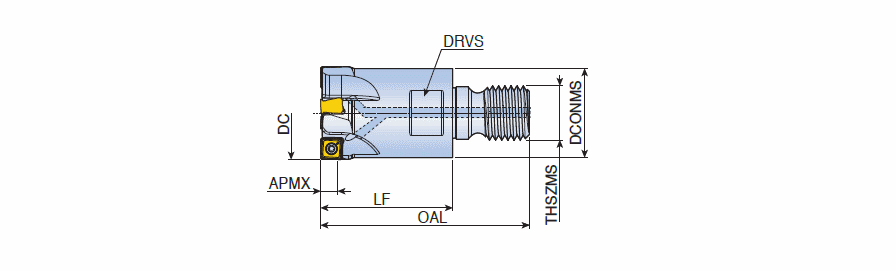

| Cutting Diameter (DC/DCX) | 40 mm | Connection Diameter Machine Side (DCONMS) | 29 mm |
| Cutting Diameter (DC) | 40 mm | Master Insert Identification (MIID) | SQKU 070308 PNR-M |
| Cutting Item Count (CICT) | 5 | Functional Length (LF) | 43 mm |
| Depth of Cut Maximum (APMX) | 5 mm | Measurement Type | Metric |
| Overall Length (OAL) | 68 mm | Body Material | Steel |
| Application | | Facing | Shouldering | Slotting | | Unit | M |
Product Features
| Family Description | Modular 90° end mills with T-FLEXTEC adaptation & double sided square inserts SQ 07 of 8 cutting edges | FamilyName | 8D-TE90-M-07 |
| Remarks | Matched with T FLEXTEC holder | BrandName | TaeguTec |
| COO | S.KOREA |
Shipping Info
Weight per item
0.3400
Name
Indexable End Mills
FamilyName
8D-TE90-M-07
BrandName
TaeguTec
