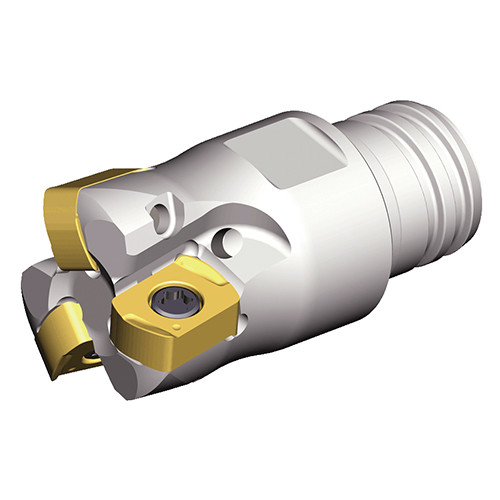

TEBL 210-S06-04
High feed end mills with BLMP 04 inserts of 4 cutting edges and MAXIRUSH modular adaptations in maximum depth of cut ap 0.5 mm
| Cutting Diameter (DC/DCX) | 10 mm | Master Insert Identification (MIID) | BLMP 0402R-M |
| Cutting Diameter (DC) | 5.7 mm | Functional Length (LF) | 15 mm |
| Cutting Item Count (CICT) | 2 | Measurement Type | Metric |
| Depth of Cut Maximum (APMX) | 0.5 mm | Body Material | Steel |
| Overall Length (OAL) | 21.3 mm | Cutting Diameter Maximum (DCX) | 10 mm |
| Application | | Facing | Helical Interpolation | High Feed Milling | Profiling | Rampdown | | Unit | M |
| Connection Diameter Machine Side (DCONMS) | 9.6 mm |
Product Features
| Family Description | High feed end mills with BLMP 04 inserts of 4 cutting edges and MAXIRUSH modular adaptations in maximum depth of cut ap 0.5 mm | FamilyName | TEBL-S-04 |
| Remarks | Matched with MAXI RUSH holder | BrandName | Taegutec |
| COO | S.KOREA |
Shipping Info
Weight per item
0.0800
Name
Indexable End Mills
FamilyName
TEBL-S-04
BrandName
Taegutec
