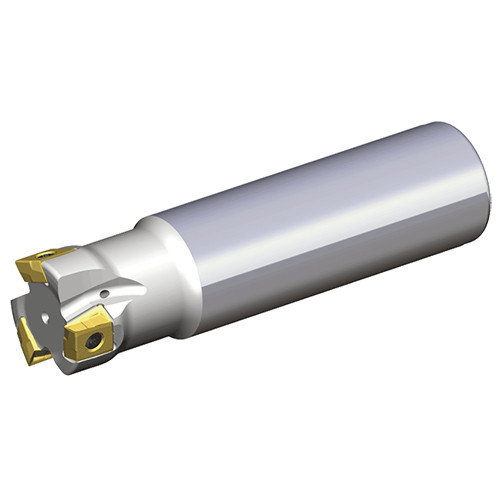

4T-TE90-220-20-09-L170
90° End mills with strong tangential type 4 cutting edge LPK(H)U 09 inserts

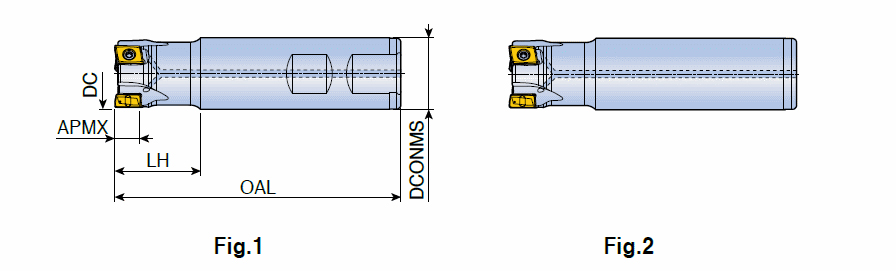

| Cutting Diameter (DC/DCX) | 20 mm | Connection Diameter Machine Side (DCONMS) | 20 mm |
| Cutting Diameter (DC) | 20 mm | Master Insert Identification (MIID) | LPHU 090404 PNR-M |
| Cutting Item Count (CICT) | 2 | Head Length (LH) | 30 mm |
| Depth of Cut Maximum (APMX) | 8.3 mm | Measurement Type | Metric |
| Overall Length (OAL) | 170 mm | Body Material | Steel |
| Shank Type | Round | Unit | M |
| Application | | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | |
Product Features
| Family Description | 90° End mills with strong tangential type 4 cutting edge LPK(H)U 09 inserts | FamilyName | 4T-TE90-09 |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.4500
Name
Indexable End Mills
FamilyName
4T-TE90-09
BrandName
Taegutec
