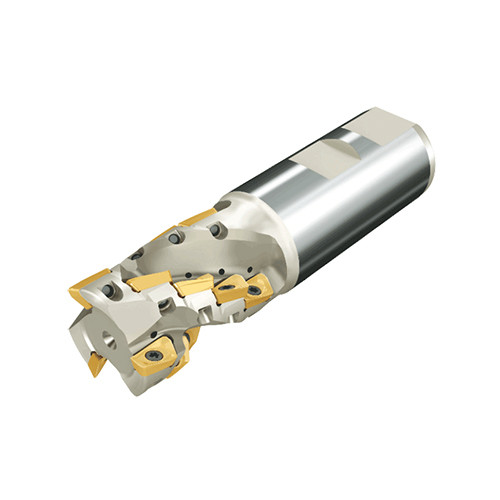

TEF D25-27-W25-AV10-2F
Extended flute end mills with AVK(C)T inserts for shoulder milling

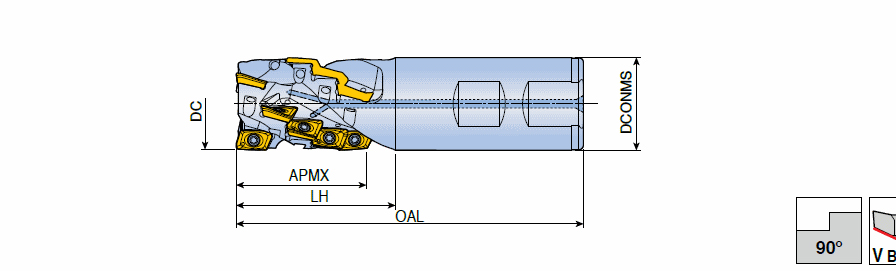

| Cutting Diameter (DC/DCX) | 25 mm | Application | | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | |
| Cutting Diameter (DC) | 25 mm | Connection Diameter Machine Side (DCONMS) | 25 mm |
| Cutting Item Count (CICT) | 6 | Master Insert Identification (MIID) | AVKT 1004 PER-M |
| Depth of Cut Maximum (APMX) | 27 mm | Measurement Type | Metric |
| Overall Length (OAL) | 95 mm | Body Material | Steel |
| Shank Type | Weldon | Unit | M |
Product Features
| Family Description | Extended flute end mills with AVK(C)T inserts for shoulder milling | FamilyName | TEF-AV10 |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.3600
Name
Indexable End Mills
FamilyName
TEF-AV10
BrandName
Taegutec
