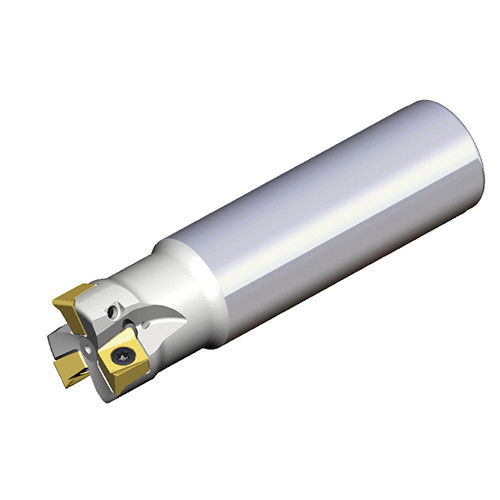

4N TE90-432-W32-09
90° End mills with unique four high positive helical cutting edges of double-sided 4NK(H)T 09 inserts and high ramping capability

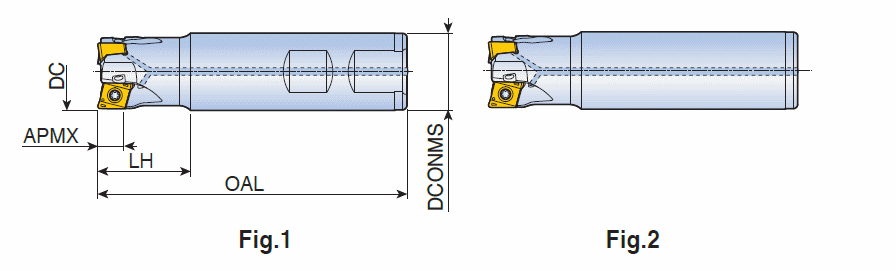

| Cutting Diameter (DC/DCX) | 32 mm | Connection Diameter Machine Side (DCONMS) | 32 mm |
| Cutting Diameter (DC) | 32 mm | Master Insert Identification (MIID) | 4NKT 090408R-M |
| Cutting Item Count (CICT) | 4 | Head Length (LH) | 40 mm |
| Depth of Cut Maximum (APMX) | 8 mm | Measurement Type | Metric |
| Overall Length (OAL) | 110 mm | Body Material | Steel |
| Shank Type | Weldon | Unit | M |
| Application | | Facing | Helical Interpolation | High Feed Milling | Profiling | Rampdown | Shouldering | Slotting | Step down machining | |
Product Features
| Family Description | 90° End mills with unique four high positive helical cutting edges of double-sided 4NK(H)T 09 inserts and high ramping capability | FamilyName | 4N TE90-09 |
| Remarks | Cutter body for '4NKT 090432R HF' insert should be modified with body corner radius 3.2 mm | BrandName | Taegutec |
| COO | S.KOREA |
Shipping Info
Weight per item
0.6850
Name
Indexable End Mills
FamilyName
4N TE90-09
BrandName
Taegutec
