SCRM90TN 235-W32-18

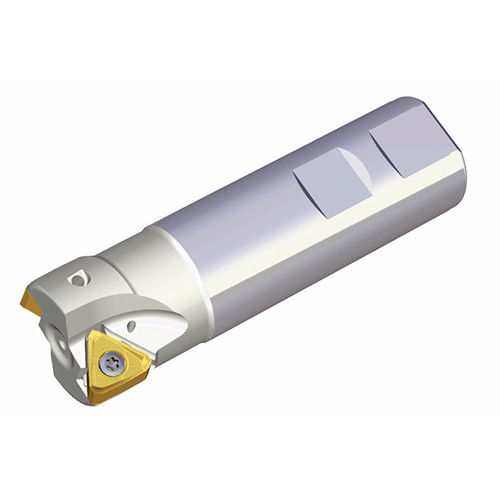

90° End mills with helical six cutting edges of double-sided TNMX 18 inserts

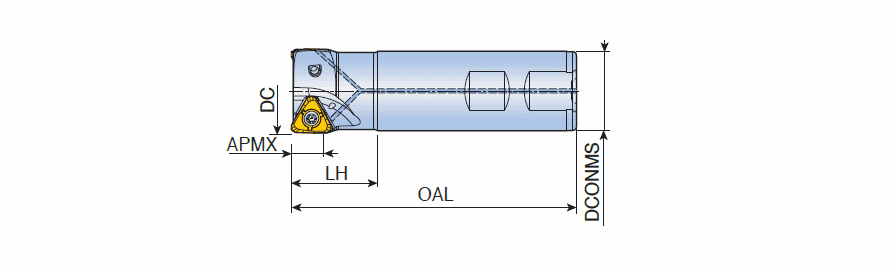

| Cutting Diameter (DC/DCX) | 35 mm | Connection Diameter Machine Side (DCONMS) | 32 mm |
| Cutting Diameter (DC) | 35 mm | Master Insert Identification (MIID) | TNMX 1806 PNTR-M |
| Cutting Item Count (CICT) | 2 | Head Length (LH) | 35 mm |
| Depth of Cut Maximum (APMX) | 13 mm | Measurement Type | Metric |
| Overall Length (OAL) | 115 mm | Body Material | Steel |
| Shank Type | Weldon | Unit | M |
| Application | | Facing | Shouldering | Slotting | |
Product Features
| Family Description | 90° End mills with helical six cutting edges of double-sided TNMX 18 inserts | FamilyName | SCRM90TN-W-18 |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.7200
Name
Indexable End Mills
FamilyName
SCRM90TN-W-18
BrandName
Taegutec
