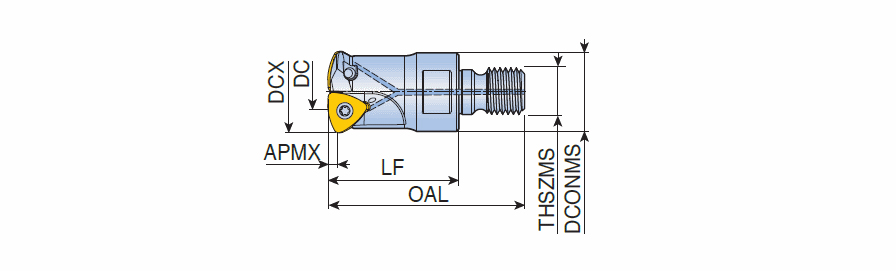

| Cutting Diameter (DC/DCX) | 33 mm | Master Insert Identification (MIID) | BLMP 1306R-M |
| Cutting Diameter (DC) | 33 mm | Head Length (LH) | 50 mm |
| Cutting Item Count (CICT) | 2 | Connection Thread Nominal Size Machine Side (THSZMS) | M16 |
| Depth of Cut Maximum (APMX) | 2 mm | Measurement Type | Metric |
| Overall Length (OAL) | 75 mm | Body Material | Steel |
| Application | | Facing | Helical Interpolation | High Feed Milling | Profiling | Rampdown | | Unit | M |
Product Features
| Family Description | High feed end mills with BLMP 13 inserts of 6 cutting edges and T-FLEXTEC modular adaptations in max. Ap 2.0 mm | FamilyName | TEBL-M-13 |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.3300
Name
Indexable End Mills
FamilyName
TEBL-M-13
BrandName
Taegutec
