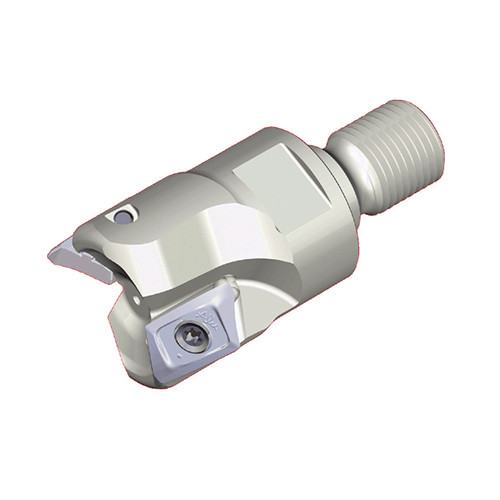

TE90XEV 340-M16-16
90° Modular end mills with T-FLEXTEC adaptation & high positive 2 helical cutting edges of V bottomed XEVT inserts for high speed aluminum machining

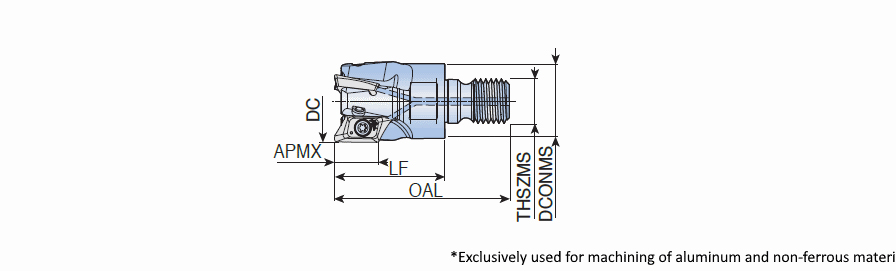

| Cutting Diameter (DC/DCX) | 40 mm | Master Insert Identification (MIID) | XEVT 160508R-AL |
| Cutting Diameter (DC) | 40 mm | Head Length (LH) | 43 mm |
| Cutting Item Count (CICT) | 3 | Connection Thread Nominal Size Machine Side (THSZMS) | M16 |
| Depth of Cut Maximum (APMX) | 16 mm | Measurement Type | Metric |
| Overall Length (OAL) | 68 mm | Body Material | Steel |
| Application | | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | Step down machining | | Unit | M |
Product Features
| Family Description | 90° Modular end mills with T-FLEXTEC adaptation & high positive 2 helical cutting edges of V bottomed XEVT inserts for high speed aluminum machining | FamilyName | TE90XEV-M-16 |
| Remarks | Cutter body for inserts with corner radii more than 3.2mm (XEVT 16) and 3.0mm (XEVT 22) should be modified as follows: body "R"=insert "R" 0.3mm | BrandName | Taegutec |
| COO | S.KOREA |
Shipping Info
Weight per item
0.3300
Name
Indexable End Mills
FamilyName
TE90XEV-M-16
BrandName
Taegutec
