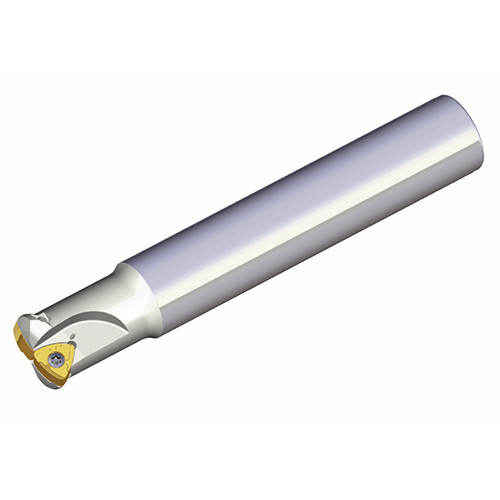

TEBL 340-32-13-L150
High feed end mills with BLMP 13 inserts of 6 cutting edges in max. ap 2.0 mm

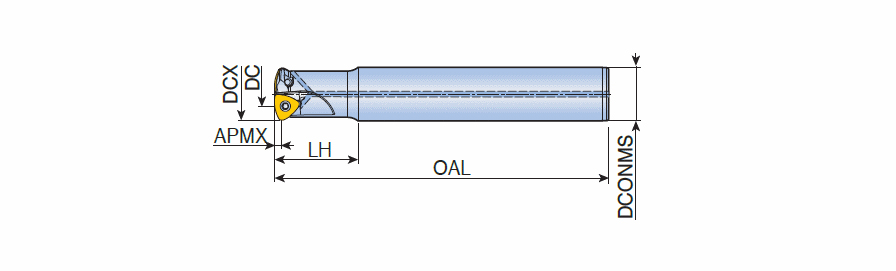

| Cutting Diameter (DC/DCX) | 40 mm | Connection Diameter Machine Side (DCONMS) | 32 mm |
| Cutting Diameter (DC) | 40 mm | Master Insert Identification (MIID) | BLMP 1306R-M |
| Cutting Item Count (CICT) | 3 | Head Length (LH) | 40 mm |
| Depth of Cut Maximum (APMX) | 2 mm | Measurement Type | Metric |
| Overall Length (OAL) | 150 mm | Body Material | Steel |
| Shank Type | Round | Unit | M |
| Application | | Facing | Helical Interpolation | High Feed Milling | Profiling | Rampdown | |
Product Features
| Family Description | High feed end mills with BLMP 13 inserts of 6 cutting edges in max. ap 2.0 mm | FamilyName | TEBL-13-L |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.9900
Name
Indexable End Mills
FamilyName
TEBL-13-L
BrandName
Taegutec
