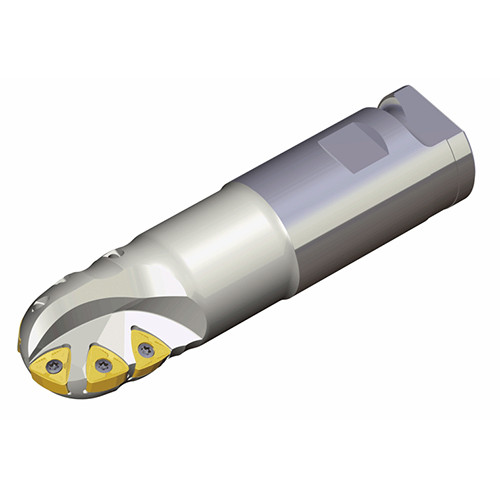

TDB50X 69-CN50.8-L250
Combination shank type holders with 6RBE 50-M inserts for rough ball tools

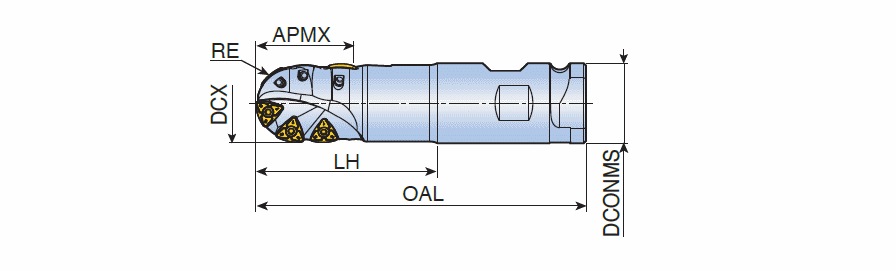

| Cutting Diameter (DC/DCX) | 50 mm | Connection Diameter Machine Side (DCONMS) | 50.8 mm |
| Cutting Diameter (DC) | 50 mm | Master Insert Identification (MIID) | 6RBE 50-M |
| Cutting Item Count (CICT) | 7 | Head Length (LH) | 160 mm |
| Depth of Cut Maximum (APMX) | 69 mm | Measurement Type | Metric |
| Overall Length (OAL) | 250 mm | Body Material | Steel |
| Shank Type | CN | Unit | M |
| Application | | Helical Interpolation | Profiling | Rampdown | |
Product Features
| Family Description | Combination shank type holders with 6RBE 50-M inserts for rough ball tools | FamilyName | TDB50X-CN |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
3.3400
Name
Indexable End Mills
FamilyName
TDB50X-CN
BrandName
Taegutec
