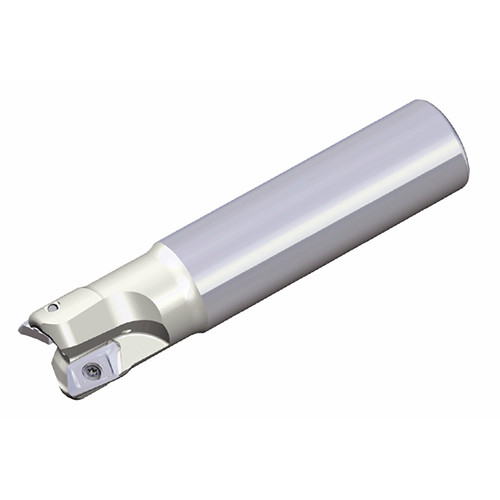

TE90XEV 340-32-16
90° End mills with XEVT 16/22 inserts of very high positive rake angle & helical cutting edges for high speed aluminum machining

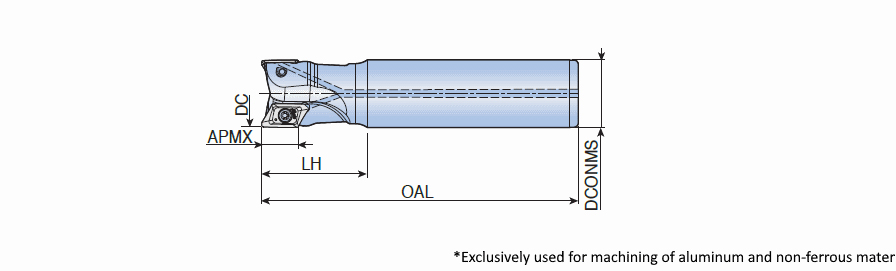

| Cutting Diameter (DC/DCX) | 40 mm | Connection Diameter Machine Side (DCONMS) | 32 mm |
| Cutting Diameter (DC) | 40 mm | Master Insert Identification (MIID) | XEVT 160508R-AL |
| Cutting Item Count (CICT) | 3 | Head Length (LH) | 55 mm |
| Depth of Cut Maximum (APMX) | 16 mm | Measurement Type | Metric |
| Overall Length (OAL) | 170 mm | Body Material | Steel |
| Shank Type | Round | Unit | M |
| Application | | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | Step down machining | |
Product Features
| Family Description | 90° End mills with XEVT 16/22 inserts of very high positive rake angle & helical cutting edges for high speed aluminum machining | FamilyName | TE90XEV-16/22 |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
1.1100
Name
Indexable End Mills
FamilyName
TE90XEV-16/22
BrandName
Taegutec
