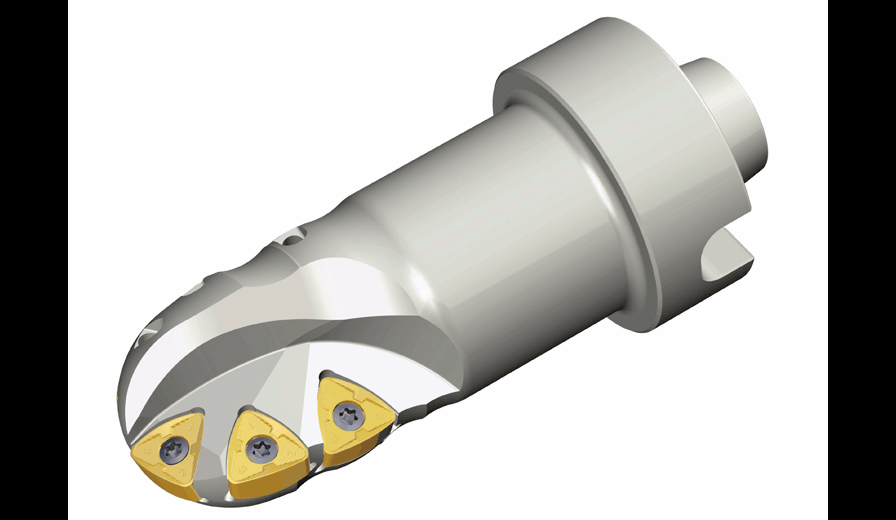

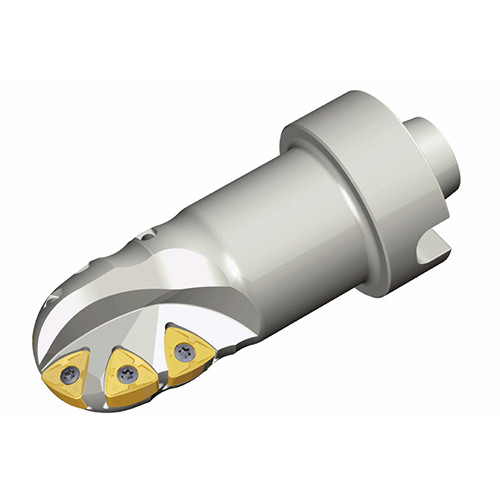

TDB50X 59-WT30-L150
WT shank type holders with 6RBE 50-M inserts for rough ball tools
| Cutting Diameter (DC/DCX) | 50 mm | Master Insert Identification (MIID) | 6RBE 50-M |
| Cutting Diameter (DC) | 50 mm | Head Length (LH) | 109 mm |
| Cutting Item Count (CICT) | 6 | Measurement Type | Metric |
| Depth of Cut Maximum (APMX) | 59 mm | Body Material | Steel |
| Overall Length (OAL) | 150 mm | Unit | M |
| Application | | Helical Interpolation | Profiling | Rampdown | |
Product Features
| Family Description | WT shank type holders with 6RBE 50-M inserts for rough ball tools | FamilyName | TDB50X-WT |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
1.7550
Name
Indexable End Mills
FamilyName
TDB50X-WT
BrandName
Taegutec
