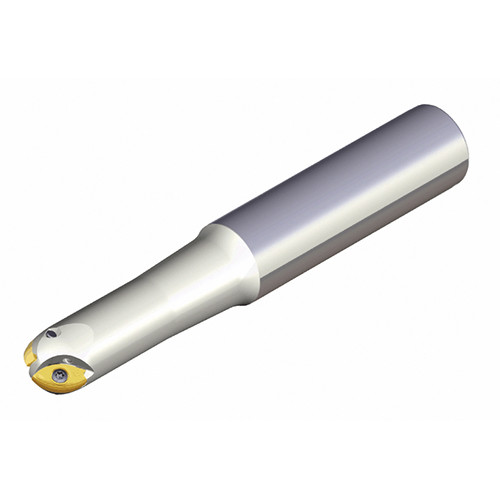

2F 20-13-W25-L150
Ball nose end mills for rough or semi-finish profiling with one insert 2FB of both internal & external pockets in diameters of 16/20/25/30/32 mm

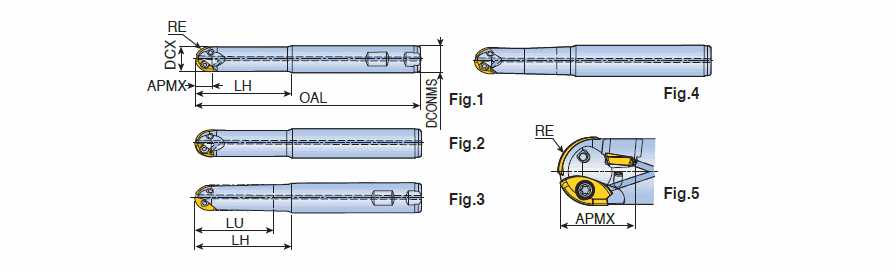

| Cutting Diameter (DC/DCX) | 20 mm | Connection Diameter Machine Side (DCONMS) | 25 mm |
| Cutting Diameter (DC) | 20 mm | Master Insert Identification (MIID) | 2FB200-M |
| Cutting Item Count (CICT) | 2 | Head Length (LH) | 65 mm |
| Depth of Cut Maximum (APMX) | 13.6 mm | Corner Radius (RE) | 10 mm |
| Overall Length (OAL) | 150 mm | Measurement Type | Metric |
| Shank Type | Weldon | Body Material | Steel |
| Application | | Helical Interpolation | Profiling | Rampdown | | Unit | M |
Product Features
| Family Description | Ball nose end mills for rough or semi-finish profiling with one insert 2FB of both internal & external pockets in diameters of 16/20/25/30/32 mm | FamilyName | 2F 16/20/25/30/32 |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.5200
Name
Indexable End Mills
FamilyName
2F 16/20/25/30/32
BrandName
Taegutec
