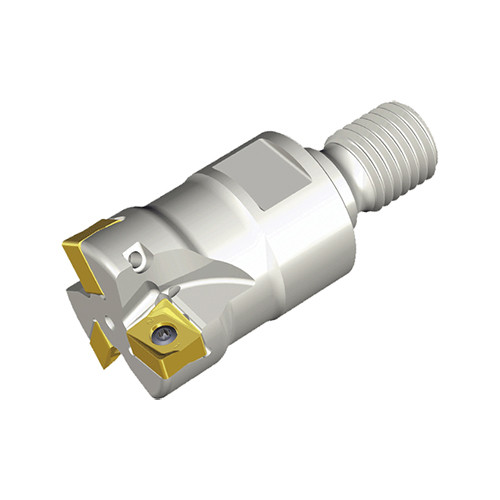

TPM 440-M16-PL09
Plunging mills with T-FLEXTEC modular adaptation & 4 helical cutting edges of PLNG 09 inserts for plunging & facing
| Cutting Diameter (DC/DCX) | 40 mm | Head Length (LH) | 43 mm |
| Cutting Diameter (DC) | 40 mm | Connection Thread Nominal Size Machine Side (THSZMS) | M16 |
| Cutting Item Count (CICT) | 4 | Measurement Type | Metric |
| Depth of Cut Maximum (APMX) | 2.8 mm | Body Material | Steel |
| Application | | Counter Boring | Side Plunging | | Unit | M |
| Master Insert Identification (MIID) | PLNG 090408R-M |
Product Features
| Family Description | Plunging mills with T-FLEXTEC modular adaptation & 4 helical cutting edges of PLNG 09 inserts for plunging & facing | FamilyName | TPM-M-PL09 |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.3350
Name
Indexable End Mills
FamilyName
TPM-M-PL09
BrandName
Taegutec
