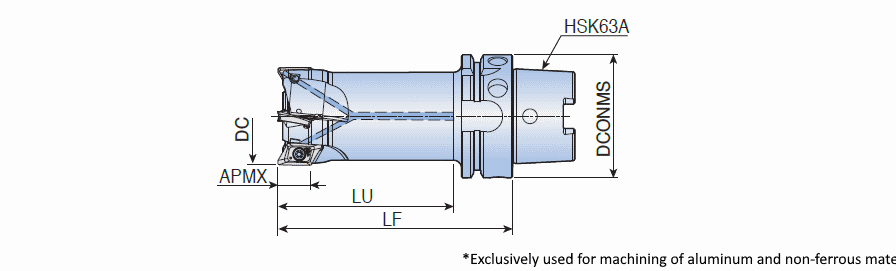

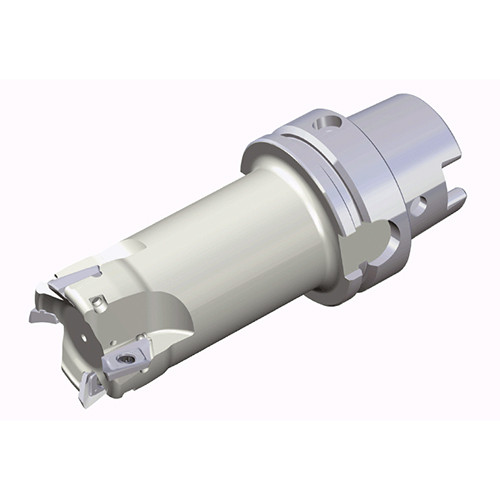

TE90XEV 340-105-HSK63A-16
90° End mills with HSK 63A shank & very high positive rake angle & two helical cutting edges of XEVT 16 for high speed machining of aluminum
| Cutting Diameter (DC/DCX) | 63 mm | Master Insert Identification (MIID) | XEVT 160508R-AL |
| Cutting Diameter (DC) | 63 mm | Head Length (LH) | 75 mm |
| Cutting Item Count (CICT) | 3 | Measurement Type | Metric |
| Depth of Cut Maximum (APMX) | 16 mm | Body Material | Steel |
| Overall Length (OAL) | 105 mm | Unit | M |
| Application | | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | Step down machining | |
Product Features
| Family Description | 90° End mills with HSK 63A shank & very high positive rake angle & two helical cutting edges of XEVT 16 for high speed machining of aluminum | FamilyName | TE90XEV-HSK63A-16 |
| Remarks | Cutter body for inserts with corner radii more than 3.2mm (XEVT 16) should be modified as follows: body "RE"=insert "RE" 0.3mm | BrandName | Taegutec |
| COO | S.KOREA |
Shipping Info
Weight per item
1.3500
Name
Indexable End Mills
FamilyName
TE90XEV-HSK63A-16
BrandName
Taegutec
