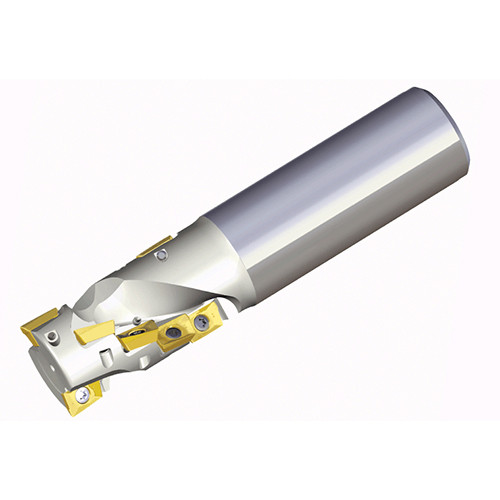

2S-TEF D32-42-W32-AP09
Extended flute end mills with high positive APKT 09 inserts of two helical cutting edges

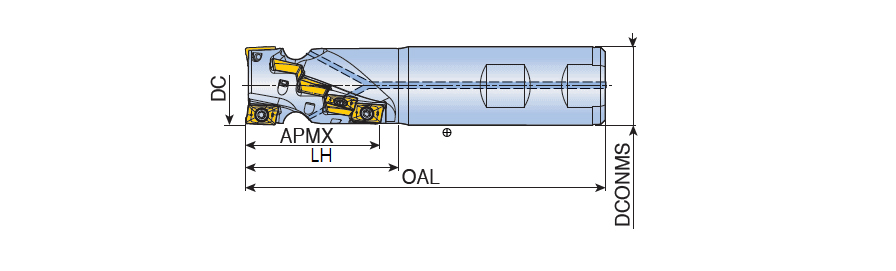

| Cutting Diameter (DC/DCX) | 32 mm | Connection Diameter Machine Side (DCONMS) | 32 mm |
| Cutting Diameter (DC) | 32 mm | Master Insert Identification (MIID) | APKT 09T3 PER-EM |
| Cutting Item Count (CICT) | 10 | Head Length (LH) | 51 mm |
| Depth of Cut Maximum (APMX) | 42 mm | Flute Count (NOF) | 2 |
| Overall Length (OAL) | 120 mm | Measurement Type | Metric |
| Shank Type | Weldon | Body Material | Steel |
| Application | | Shouldering | Slotting | Trochoidal Milling | | Unit | M |
Product Features
| Family Description | Extended flute end mills with high positive APKT 09 inserts of two helical cutting edges | FamilyName | 2S-TEF-AP09 |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.7000
Name
Indexable End Mills
FamilyName
2S-TEF-AP09
BrandName
Taegutec
