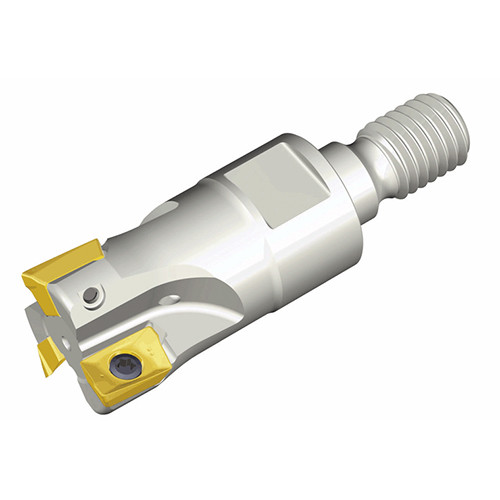

2S-TE90AP 320-M10-09
90° Modular end mills with T-FLEXTEC adaptation & high positive two helical cutting edges of APKT 09 inserts

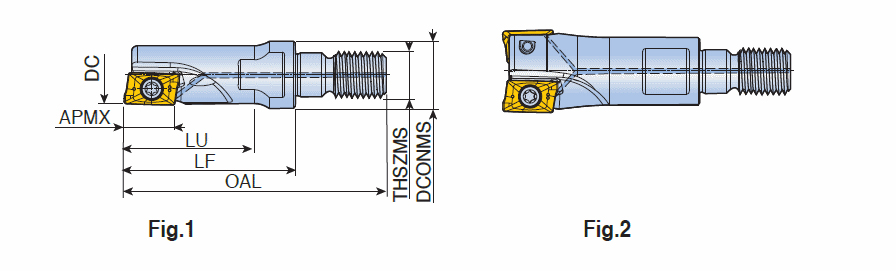

| Cutting Diameter (DC/DCX) | 20 mm | Master Insert Identification (MIID) | APKT 09T3 PER-EM |
| Cutting Diameter (DC) | 20 mm | Head Length (LH) | 38 mm |
| Cutting Item Count (CICT) | 3 | Connection Thread Nominal Size Machine Side (THSZMS) | M10 |
| Depth of Cut Maximum (APMX) | 8.8 mm | Measurement Type | Metric |
| Overall Length (OAL) | 58 mm | Body Material | Steel |
| Application | | Facing | Helical Interpolation | High Feed Milling | Profiling | Rampdown | Shouldering | Slotting | | Unit | M |
Product Features
| Family Description | 90° Modular end mills with T-FLEXTEC adaptation & high positive two helical cutting edges of APKT 09 inserts | FamilyName | 2S-TE90AP-M-09 |
| Remarks | Cutter body for 'APKT09' insert with corner radius more than 2.4mm should be modified accordingly body "RE"=insert "RE" 0.2mm | BrandName | Taegutec |
| COO | S.KOREA |
Shipping Info
Weight per item
0.1250
Name
Indexable End Mills
FamilyName
2S-TE90AP-M-09
BrandName
Taegutec
