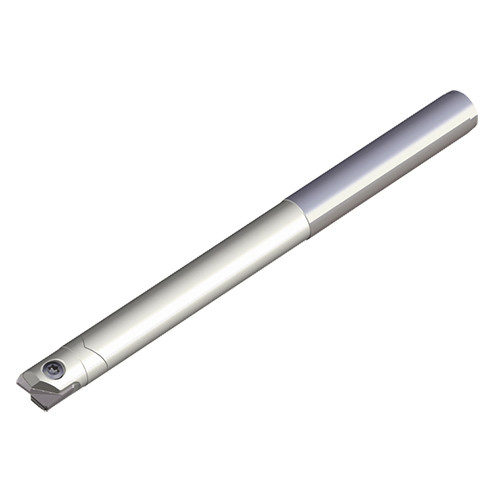

TNFR 100-10-CT-L140
End mill holders for finishing with corner radius inserts of NFR and carbide shank of better rigidity

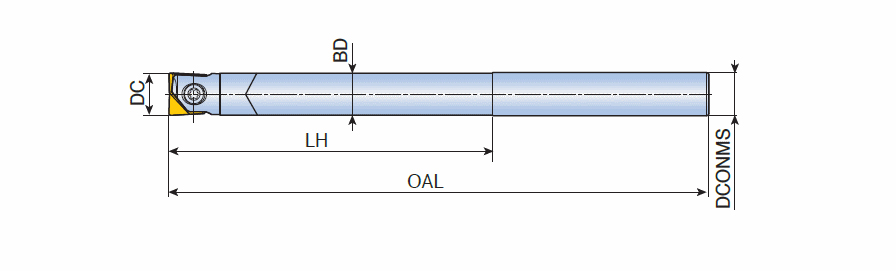

| Cutting Diameter (DC/DCX) | 10 mm | Connection Diameter Machine Side (DCONMS) | 10 mm |
| Cutting Diameter (DC) | 10 mm | Master Insert Identification (MIID) | NFR 100A-R03 |
| Cutting Item Count (CICT) | 2 | Head Length (LH) | 75 mm |
| Overall Length (OAL) | 140 mm | Measurement Type | Metric |
| Shank Type | Round | Body Material | Steel |
| Application | | Counter Boring | Drill Mill | Facing | Helical Interpolation | Profiling | Rampdown | Shouldering | Side Plunging | Slotting | Step down machining | | Unit | M |
Product Features
| Family Description | End mill holders for finishing with corner radius inserts of NFR and carbide shank of better rigidity | FamilyName | TNFR...-CT-L... |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.2100
Name
Indexable End Mills
FamilyName
TNFR...-CT-L...
BrandName
Taegutec
