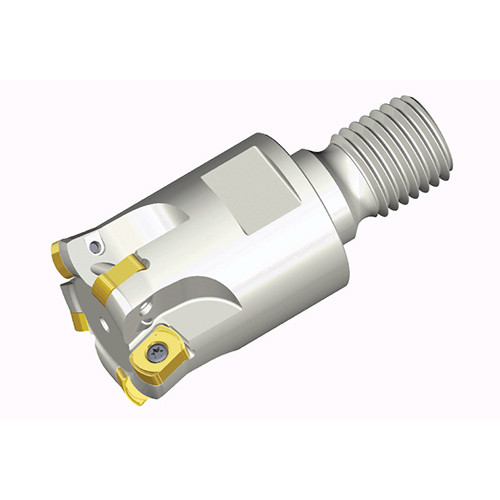

TEBL 642-M16-06
High feed end mills with BLMP 06 inserts of 4 cutting edges and T-FLEXTEC modular adaptations in max. ap 1.0 mm

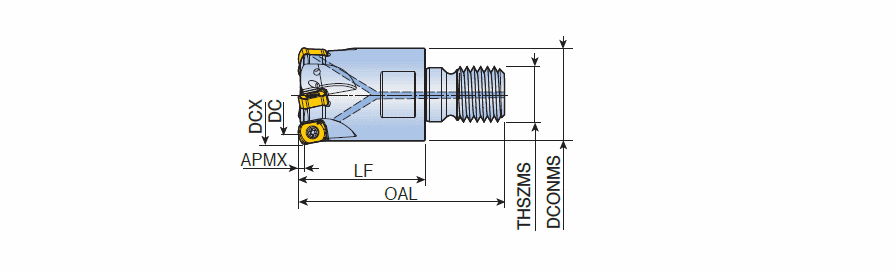

| Cutting Diameter (DC/DCX) | 42 mm | Master Insert Identification (MIID) | BLMP 0603R-M |
| Cutting Diameter (DC) | 42 mm | Head Length (LH) | 43 mm |
| Cutting Item Count (CICT) | 6 | Connection Thread Nominal Size Machine Side (THSZMS) | M16 |
| Depth of Cut Maximum (APMX) | 1 mm | Measurement Type | Metric |
| Overall Length (OAL) | 68 mm | Body Material | Steel |
| Application | | Facing | Helical Interpolation | High Feed Milling | Profiling | Rampdown | | Unit | M |
Product Features
| Family Description | High feed end mills with BLMP 06 inserts of 4 cutting edges and T-FLEXTEC modular adaptations in max. ap 1.0 mm | FamilyName | TEBL-M-06 |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.3500
Name
Indexable End Mills
FamilyName
TEBL-M-06
BrandName
Taegutec
