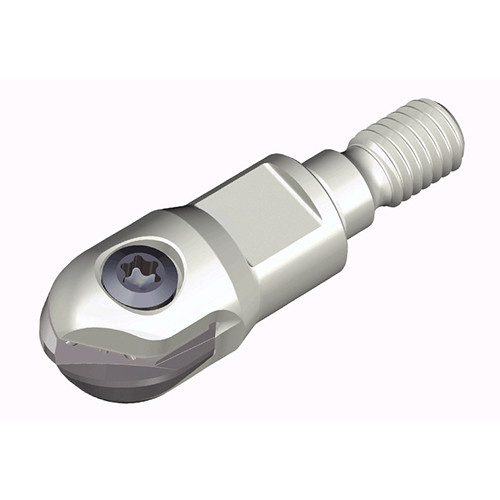

TNF 120-M06
Modular end mill holders with T-FLEXTEC adaptation and NFB or NFR inserts for finishing operations

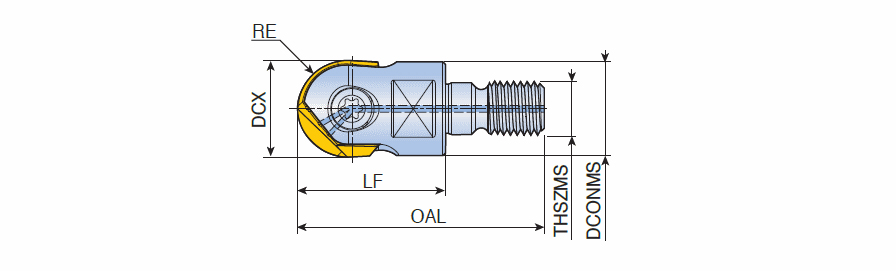

| Cutting Diameter (DC/DCX) | 12 mm | Head Length (LH) | 23 mm |
| Cutting Diameter (DC) | 12 mm | Connection Thread Nominal Size Machine Side (THSZMS) | M06 |
| Cutting Item Count (CICT) | 2 | Measurement Type | Metric |
| Overall Length (OAL) | 37.5 mm | Body Material | Steel |
| Application | | Helical Interpolation | Profiling | Rampdown | Side Plunging | | Unit | M |
| Master Insert Identification (MIID) | NFB 120-SM |
Product Features
| Family Description | Modular end mill holders with T-FLEXTEC adaptation and NFB or NFR inserts for finishing operations | FamilyName | TNF...-M... |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.1000
Name
Indexable End Mills
FamilyName
TNF...-M...
BrandName
Taegutec
