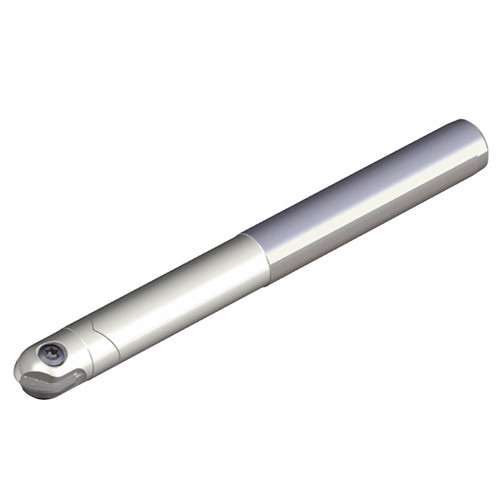

TNF 250-25-CT-L220
End mill holders for finishing applications with NFB & NFR inserts and carbide shank of better rigidity

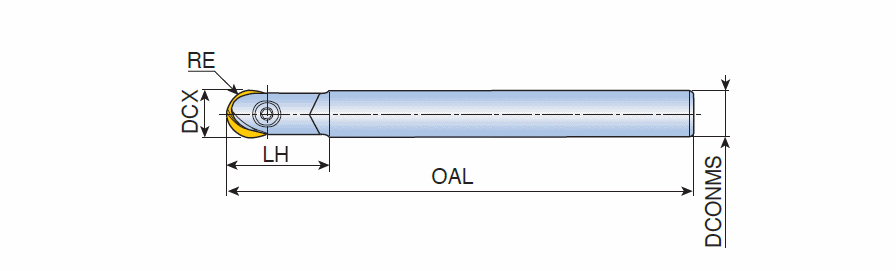

| Cutting Diameter (DC/DCX) | 25 mm | Connection Diameter Machine Side (DCONMS) | 25 mm |
| Cutting Diameter (DC) | 25 mm | Master Insert Identification (MIID) | NFB 250-SM |
| Cutting Item Count (CICT) | 2 | Head Length (LH) | 120 mm |
| Depth of Cut Maximum (APMX) | 12.5 mm | Corner Radius (RE) | 12.5 mm |
| Overall Length (OAL) | 220 mm | Measurement Type | Metric |
| Shank Type | Round | Body Material | Steel |
| Application | | Helical Interpolation | Profiling | Rampdown | Side Plunging | | Unit | M |
Product Features
| Family Description | End mill holders for finishing applications with NFB & NFR inserts and carbide shank of better rigidity | FamilyName | TNF...-CT-L... |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
2.0000
Name
Indexable End Mills
FamilyName
TNF...-CT-L...
BrandName
Taegutec
