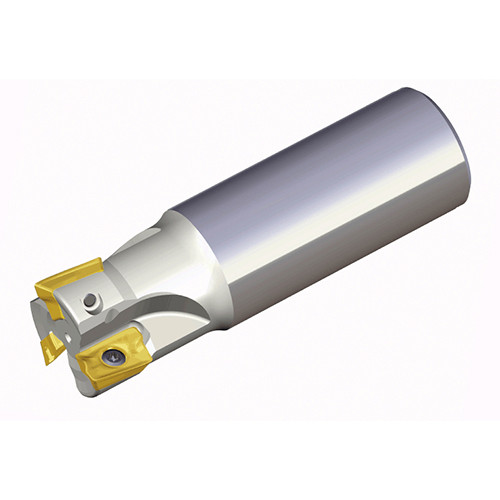

TE90AP 440-32-17-L
90° End mills with high positive two helical cutting edges of AP.. 17 inserts

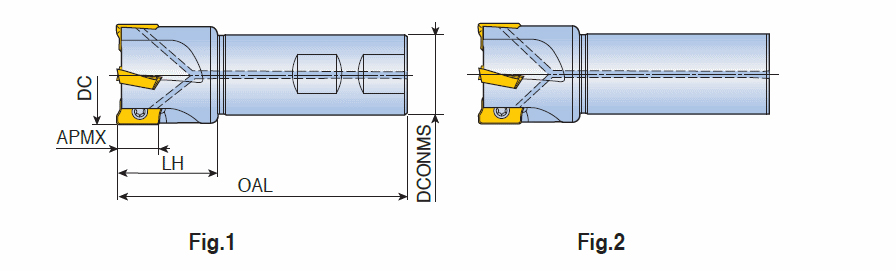

| Cutting Diameter (DC/DCX) | 40 mm | Connection Diameter Machine Side (DCONMS) | 32 mm |
| Cutting Diameter (DC) | 40 mm | Master Insert Identification (MIID) | APKT 1705 PER-EM |
| Cutting Item Count (CICT) | 4 | Head Length (LH) | 57 mm |
| Depth of Cut Maximum (APMX) | 16.1 mm | Measurement Type | Metric |
| Overall Length (OAL) | 200 mm | Body Material | Steel |
| Shank Type | Round | Unit | M |
| Application | | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | |
Product Features
| Family Description | 90° End mills with high positive two helical cutting edges of AP.. 17 inserts | FamilyName | TE90AP-17 |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
1.3750
Name
Indexable End Mills
FamilyName
TE90AP-17
BrandName
Taegutec
