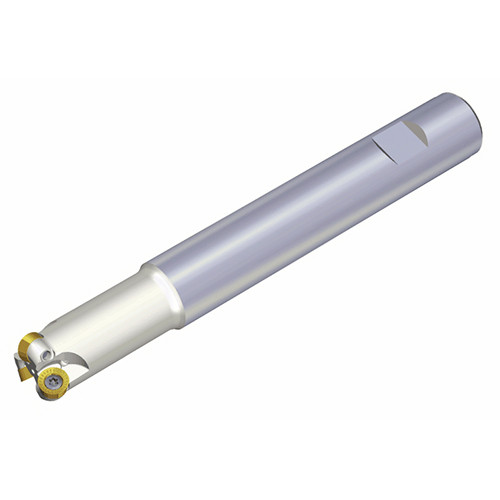

TERY 350-40-20
End mills with strong positive round inserts of RYM(H)X for general profiling

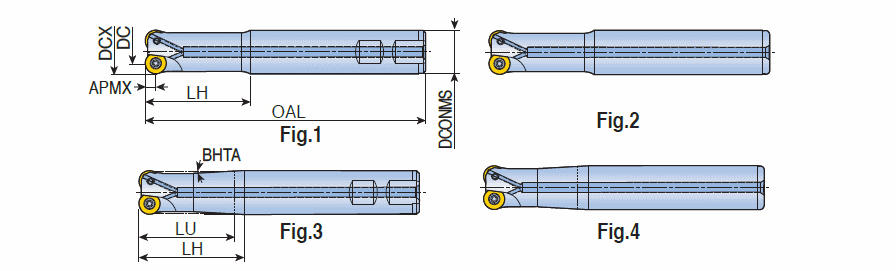

| Cutting Diameter (DC/DCX) | 50 mm | Connection Diameter Machine Side (DCONMS) | 40 mm |
| Cutting Diameter (DC) | 50 mm | Master Insert Identification (MIID) | RYMX 2007-ML |
| Cutting Item Count (CICT) | 3 | Head Length (LH) | 60 mm |
| Depth of Cut Maximum (APMX) | 10 mm | Body Half Taper Angle (BHTA) | Degrees |
| Overall Length (OAL) | 200 mm | Measurement Type | Metric |
| Shank Type | Round | Body Material | Steel |
| Application | | Facing | Helical Interpolation | Profiling | Rampdown | | Unit | M |
Product Features
| Family Description | End mills with strong positive round inserts of RYM(H)X for general profiling | FamilyName | TERY-08/10/12/16/20 |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
1.9200
Name
Indexable End Mills
FamilyName
TERY-08/10/12/16/20
BrandName
Taegutec
