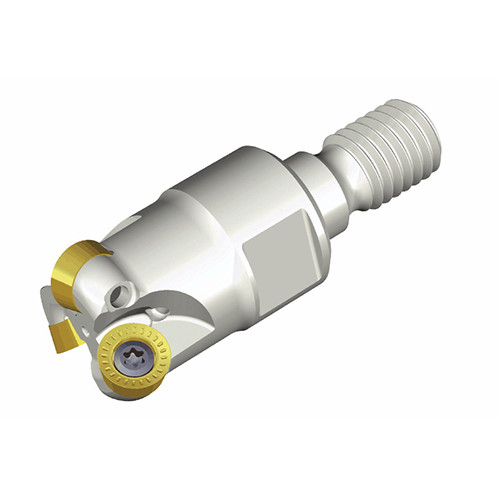

TERY 240-M16-16
Modular end mills with T-FLEXTEC adaptation and strong positive round inserts of RYM(H)X for profiling

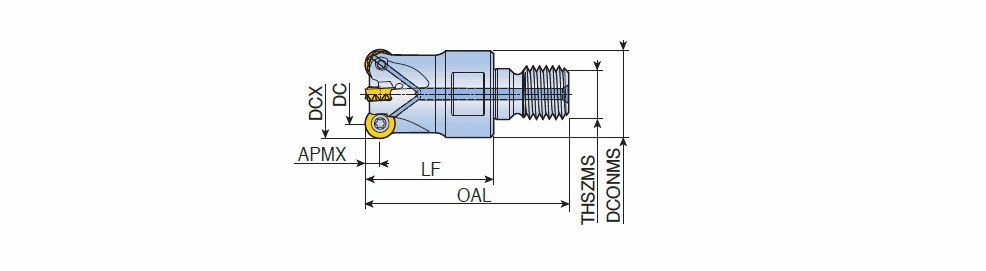

| Cutting Diameter (DC/DCX) | 40 mm | Master Insert Identification (MIID) | RYMX 1606-M |
| Cutting Diameter (DC) | 40 mm | Head Length (LH) | 43 mm |
| Cutting Item Count (CICT) | 2 | Connection Thread Nominal Size Machine Side (THSZMS) | M16 |
| Depth of Cut Maximum (APMX) | 8 mm | Measurement Type | Metric |
| Overall Length (OAL) | 68 mm | Body Material | Steel |
| Application | | Facing | Helical Interpolation | Profiling | Rampdown | | Unit | M |
Product Features
| Family Description | Modular end mills with T-FLEXTEC adaptation and strong positive round inserts of RYM(H)X for profiling | FamilyName | TERY-M-08/10/12/16 |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.3200
Name
Indexable End Mills
FamilyName
TERY-M-08/10/12/16
BrandName
Taegutec
