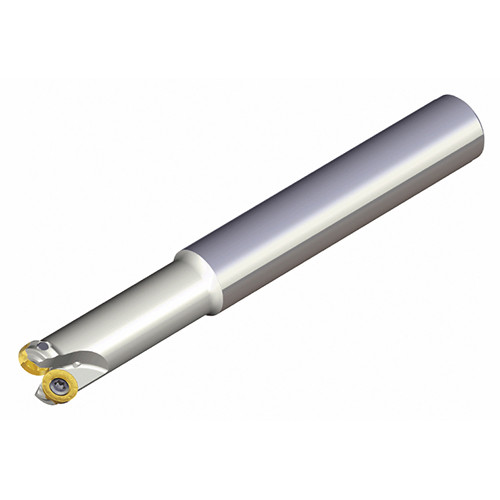

TERX 220-25-10-L
End mills with positive round inserts of RXM(H)X for general profiling

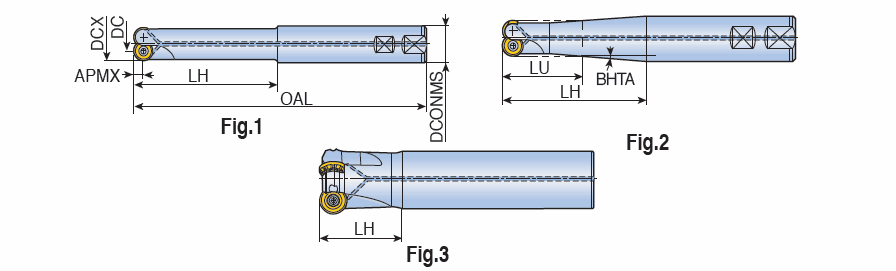

| Cutting Diameter (DC/DCX) | 20 mm | Master Insert Identification (MIID) | RXMX 1003-M |
| Cutting Diameter (DC) | 10 mm | Head Length (LH) | 80 mm |
| Cutting Item Count (CICT) | 2 | Usable Length (LU) | 60 mm |
| Depth of Cut Maximum (APMX) | 5 mm | Body Half Taper Angle (BHTA) | 4 Degrees |
| Overall Length (OAL) | 250 mm | Measurement Type | Metric |
| Shank Type | Round | Body Material | Steel |
| Application | | Facing | Helical Interpolation | Profiling | Rampdown | | Cutting Diameter Maximum (DCX) | 20 mm |
| Connection Diameter Machine Side (DCONMS) | 25 mm | Unit | M |
Product Features
| Family Description | End mills with positive round inserts of RXM(H)X for general profiling | FamilyName | TERX-10/12/16/20 |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.9000
Name
Indexable End Mills
FamilyName
TERX-10/12/16/20
BrandName
Taegutec
