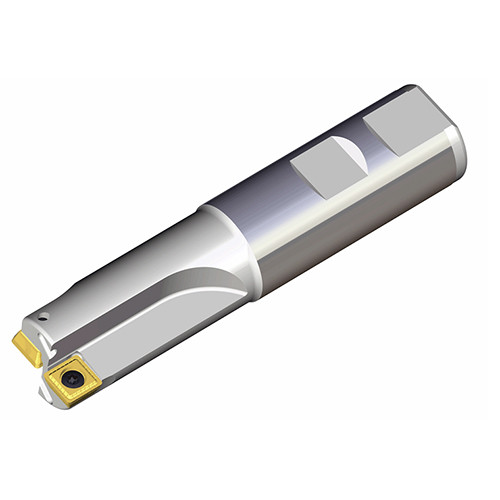

TDM 228 W32-09
Drilling & milling end mills with SPMT and SPMG 09/11/14 milling inserts

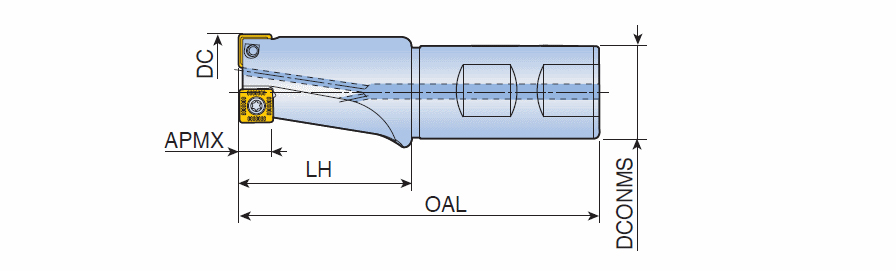

| Cutting Diameter (DC/DCX) | 28 mm | Connection Diameter Machine Side (DCONMS) | 32 mm |
| Cutting Diameter (DC) | 28 mm | Master Insert Identification (MIID) | SPMG 090408-EM |
| Cutting Item Count (CICT) | 2 | Head Length (LH) | 60 mm |
| Depth of Cut Maximum (APMX) | 9 mm | Measurement Type | Metric |
| Overall Length (OAL) | 125 mm | Body Material | Steel |
| Shank Type | Weldon | Unit | M |
| Application | | Counter Boring | Drill Mill | Facing | Helical Interpolation | Rampdown | Shouldering | Side Plunging | Slotting | Step down machining | |
Product Features
| Family Description | Drilling & milling end mills with SPMT and SPMG 09/11/14 milling inserts | FamilyName | TDM-09/11/14 |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.6350
Name
Indexable End Mills
FamilyName
TDM-09/11/14
BrandName
Taegutec
