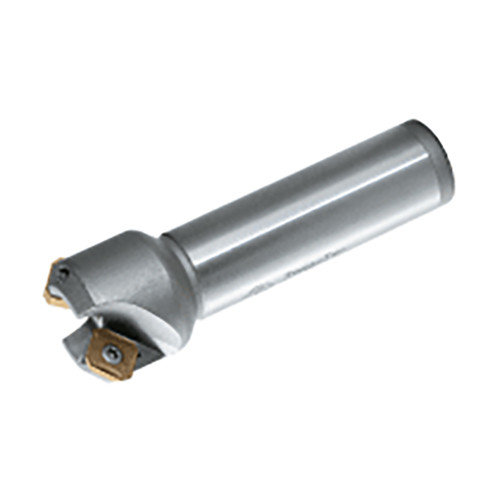

TE45SE 225-12
45° End mills with high positive SEKT 12 inserts of 4 cutting edges

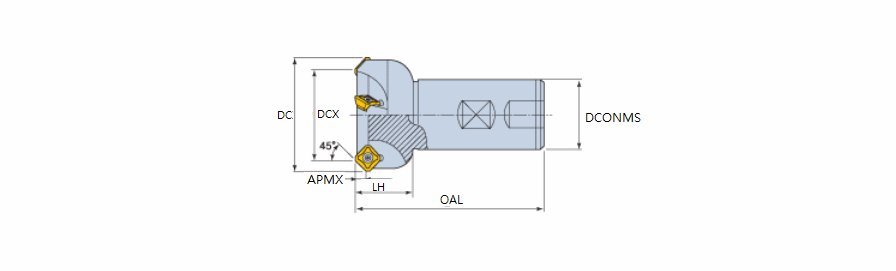

| Cutting Diameter (DC/DCX) | 37.2 mm | Connection Diameter Machine Side (DCONMS) | 25 mm |
| Cutting Diameter (DC) | 37.2 mm | Master Insert Identification (MIID) | SEKT 12T3 AFTN-M |
| Cutting Item Count (CICT) | 2 | Head Length (LH) | 32 mm |
| Depth of Cut Maximum (APMX) | 6.7 mm | Measurement Type | Metric |
| Overall Length (OAL) | 112 mm | Body Material | Steel |
| Shank Type | Weldon | Unit | M |
| Application | | Chamfer & Serration | Facing | |
Product Features
| Family Description | 45° End mills with high positive SEKT 12 inserts of 4 cutting edges | FamilyName | TE45SE-12 |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.5500
Name
Indexable End Mills
FamilyName
TE45SE-12
BrandName
Taegutec
