4S-TES-D50-69-22R-11V-4F
Extended flute shell mills for exotic material machining with unique rigid V-bottom positive square SVK(H)T inserts of four convex cutting edges without mismatch

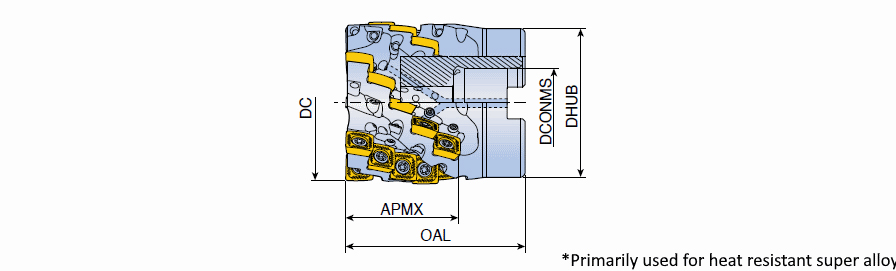

| Cutting Diameter (DC/DCX) | 50 mm | Hub Diameter (DHUB) | 45 mm |
| Cutting Diameter (DC) | 50 mm | Master Insert Identification (MIID) | SVKT 114508-ML |
| Cutting Item Count (CICT) | 32 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 69.4 mm | Application | | Shouldering | Slotting | Trochoidal Milling | |
| Connection Diameter Machine Side (DCONMS) | 22 mm | Measurement Type | Metric |
| Overall Length (OAL) | 69.4 mm | Unit | M |
Product Features
| Family Description | Extended flute shell mills for exotic material machining with unique rigid V-bottom positive square SVK(H)T inserts of four convex cutting edges without mismatch | FamilyName | 4S-TES-R-11V |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.8450
Name
Indexable Face Mills
FamilyName
4S-TES-R-11V
BrandName
Taegutec
