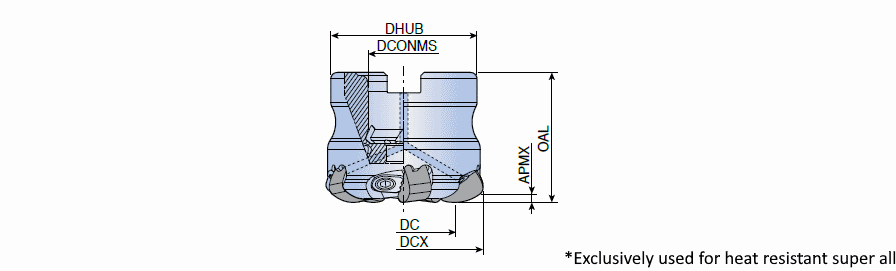

| Cutting Diameter (DC/DCX) | 50 mm | Hub Diameter (DHUB) | 45 mm |
| Cutting Diameter (DC) | 32.8 mm | Master Insert Identification (MIID) | BNGX 1207-E04 |
| Cutting Diameter Maximum (DCX) | 50 mm | Body Material | Steel |
| Cutting Item Count (CICT) | 5 | Application | | Facing | Helical Interpolation | High Feed Milling | Profiling | Rampdown | |
| Depth of Cut Maximum (APMX) | 2.5 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 22 mm | Unit | M |
| Overall Length (OAL) | 40 mm |
Product Features
| Family Description | High Feed mills with negative Ceramic inserts of 6 cutting edges & air holes for high speed machining of super alloys in wedge clamping type | FamilyName | TFMBN-R-12 |
| Remarks | Use only air(coolant is prohibited) Mounting bolt with coolant through hole is available on request (ordering example: SH M10x1.5x30 C) | BrandName | TaeguTec |
| COO | S.KOREA |
Shipping Info
Weight per item
0.8800
Name

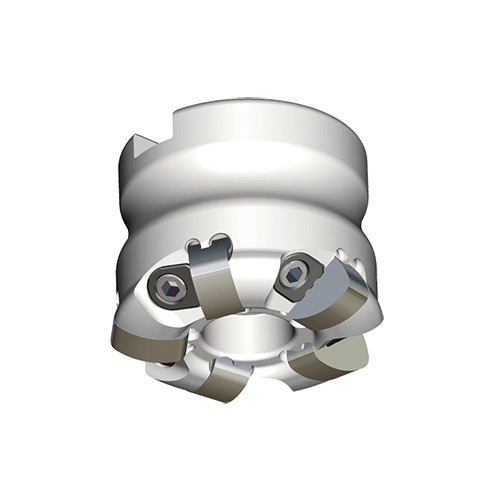

Indexable Face Mills
FamilyName
TFMBN-R-12
BrandName
TaeguTec
