4W-TF90-10160-40R-12
Face mills with periphery ground precise wiper inserts for super finishing of various materials such as steels, cast iron & aluminum alloys

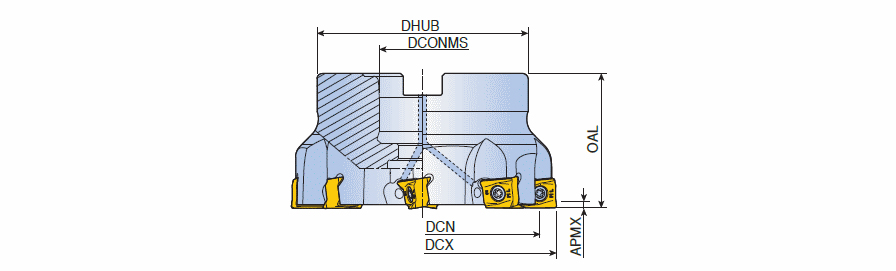

| Cutting Diameter (DC/DCX) | 160 mm | Hub Diameter (DHUB) | 110 mm |
| Cutting Diameter Maximum (DCX) | 160 mm | Master Insert Identification (MIID) | 4WHU 1207-ML |
| Cutting Item Count (CICT) | 10 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 0.5 mm | Application | | Facing | |
| Connection Diameter Machine Side (DCONMS) | 40 mm | Measurement Type | Metric |
| Overall Length (OAL) | 0.5 mm | Unit | M |
Product Features
| Family Description | Face mills with periphery ground precise wiper inserts for super finishing of various materials such as steels, cast iron & aluminum alloys | FamilyName | 4W-TF90-R-12 |
| Remarks | DCN: Cutting diameter minimum DCX: Cutting diameter maximum Mounting bolt with coolant through hole is available on request (ordering example: SH M10x1.5x30 C) | BrandName | Taegutec |
| COO | S.KOREA |
Shipping Info
Weight per item
4.7600
Name
Indexable Face Mills
FamilyName
4W-TF90-R-12
BrandName
Taegutec
