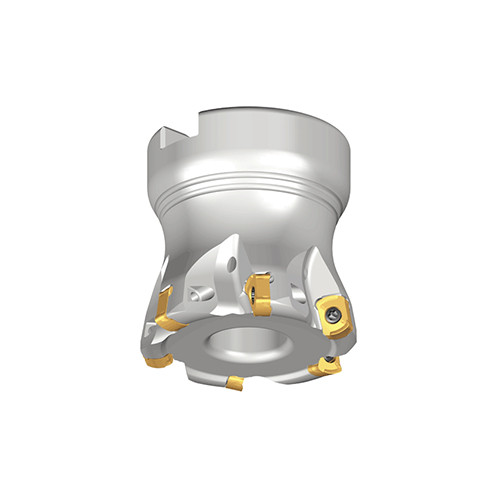

TFMBLV 650-22R-06
Face mills with 4 cutting edges of V-shaped double-sided BLMV inserts for high feed milling

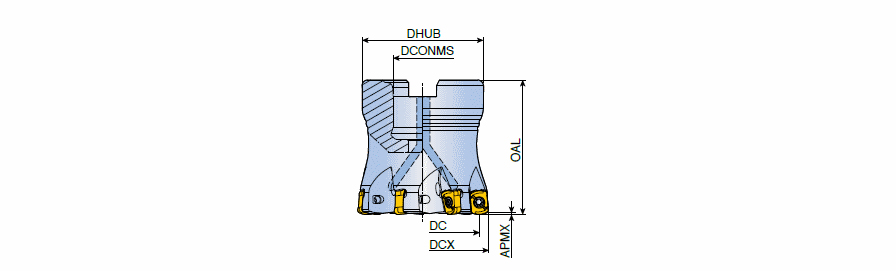

| Cutting Diameter (DC/DCX) | 50 mm | Hub Diameter (DHUB) | 45 mm |
| Cutting Diameter (DC) | 42 mm | Master Insert Identification (MIID) | BLMV 0603R-M |
| Cutting Diameter Maximum (DCX) | 50 mm | Body Material | Steel |
| Cutting Item Count (CICT) | 6 | Application | | Facing | Helical Interpolation | High Feed Milling | Profiling | Rampdown | Step down machining | |
| Depth of Cut Maximum (APMX) | 1 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 22 mm | Unit | M |
| Overall Length (OAL) | 1 mm |
Product Features
| Family Description | Face mills with 4 cutting edges of V-shaped double-sided BLMV inserts for high feed milling | FamilyName | TFMBLV-R-06 |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.5250
Name
Indexable Face Mills
FamilyName
TFMBLV-R-06
BrandName
Taegutec
