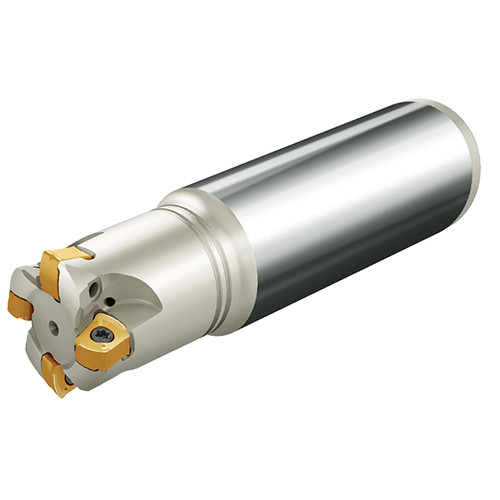

TEBLV 216-15-06-L150
End mills with 4 cutting edges of V-shaped double-sided BLMV inserts for high feed milling

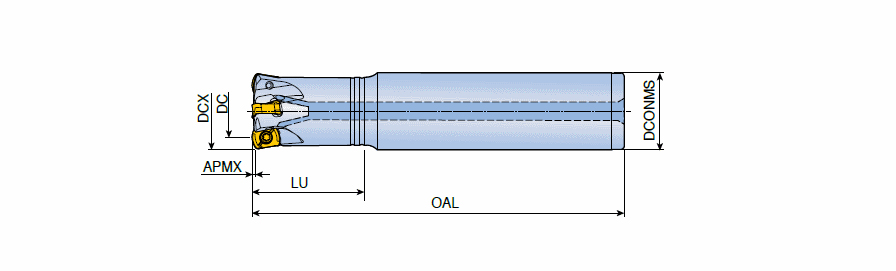

| Cutting Diameter (DC/DCX) | 16 mm | Overall Length (OAL) | 0.7 mm |
| Cutting Diameter (DC) | 9.1 mm | Master Insert Identification (MIID) | BLMV 0603R-M |
| Cutting Diameter Maximum (DCX) | 16 mm | Body Material | Steel |
| Cutting Item Count (CICT) | 2 | Application | | Facing | Helical Interpolation | High Feed Milling | Profiling | Rampdown | Step down machining | |
| Depth of Cut Maximum (APMX) | 0.7 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 15 mm | Unit | M |
Product Features
| Family Description | End mills with 4 cutting edges of V-shaped double-sided BLMV inserts for high feed milling | FamilyName | TEBLV-06 |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.2500
Name
Indexable Face Mills
FamilyName
TEBLV-06
BrandName
Taegutec
