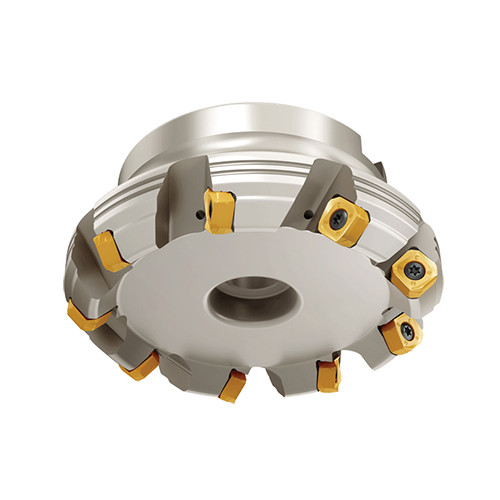

8D-TF45-16160-40R-11
45° Face mills with 8 cutting edges of double-sided Square inserts SQKU 11 for general milling

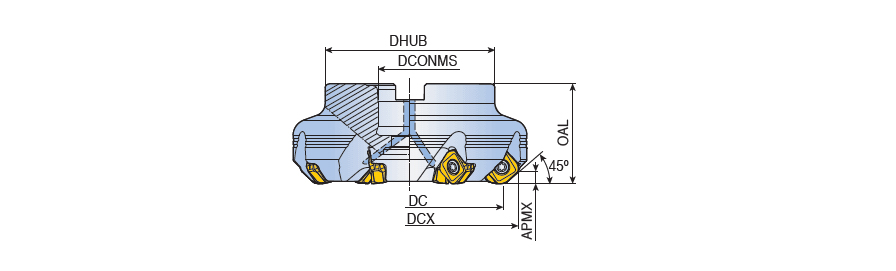

| Cutting Diameter (DC/DCX) | 171 mm | Hub Diameter (DHUB) | 110 mm |
| Cutting Diameter (DC) | 160 mm | Master Insert Identification (MIID) | SQKU 1105 ANR-M |
| Cutting Diameter Maximum (DCX) | 171 mm | Body Material | Steel |
| Cutting Item Count (CICT) | 16 | Application | | Facing | |
| Depth of Cut Maximum (APMX) | 4.2 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 40 mm | Unit | M |
| Overall Length (OAL) | 4.2 mm |

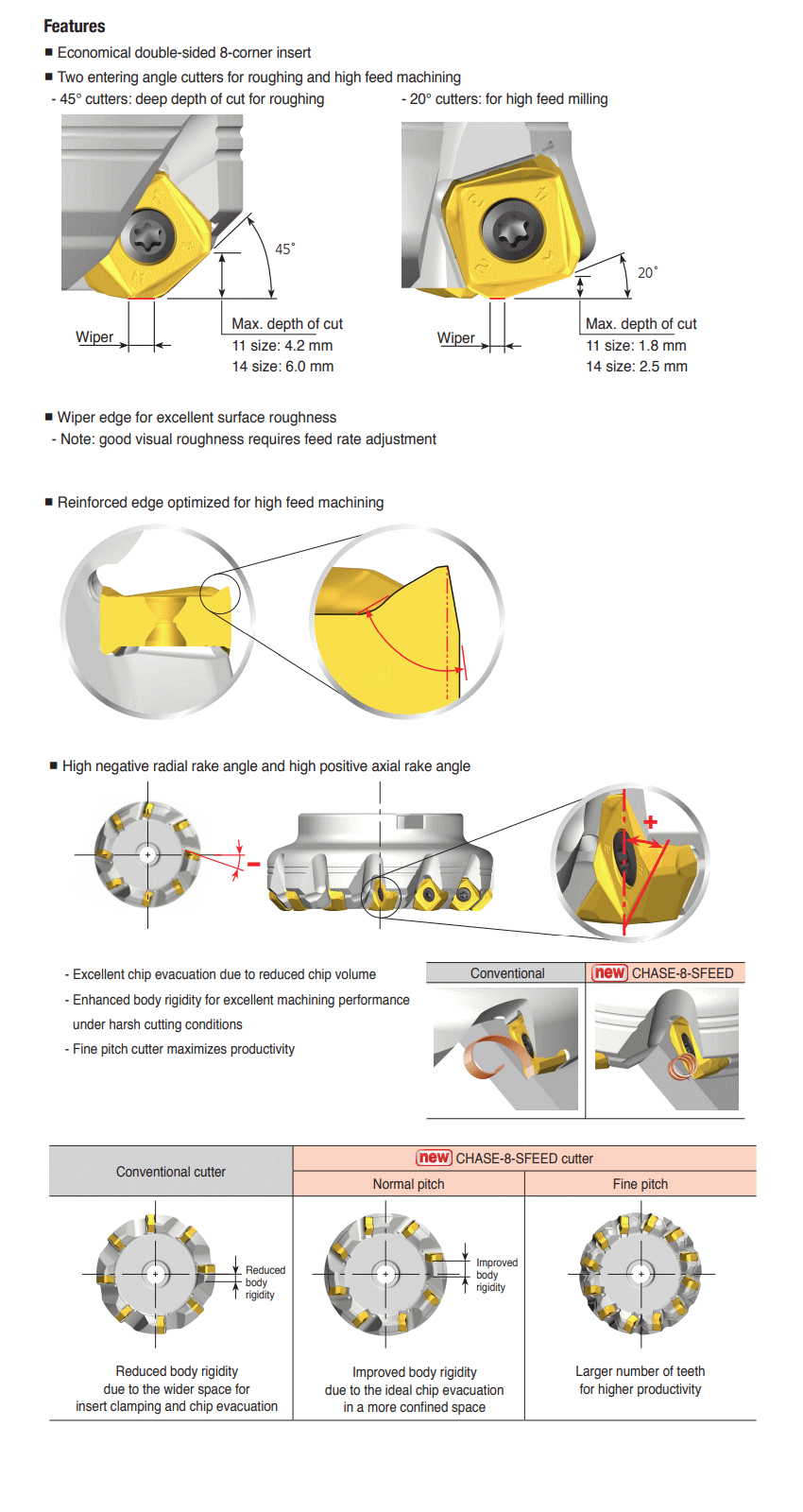

Product Features
| Family Description | 45° Face mills with 8 cutting edges of double-sided Square inserts SQKU 11 for general milling | FamilyName | 8D-TF45-R-11 |
| Remarks | Mounting bolt with coolant through hole is available on request (ordering example: SH M10x1.5x30 C) | BrandName | Taegutec |
| COO | S.KOREA |
Shipping Info
Weight per item
6.0750
Name
Indexable Face Mills
FamilyName
8D-TF45-R-11
BrandName
Taegutec
