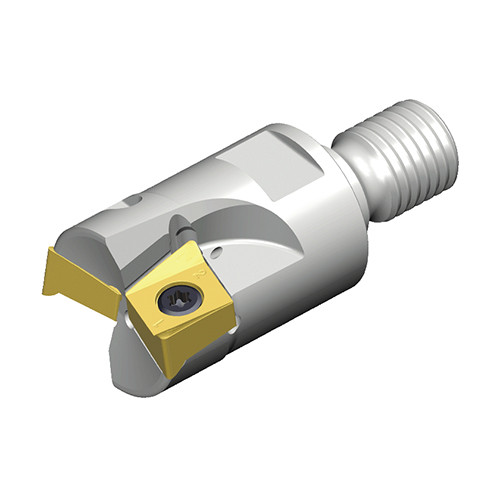

4N TE90-232-M16-14

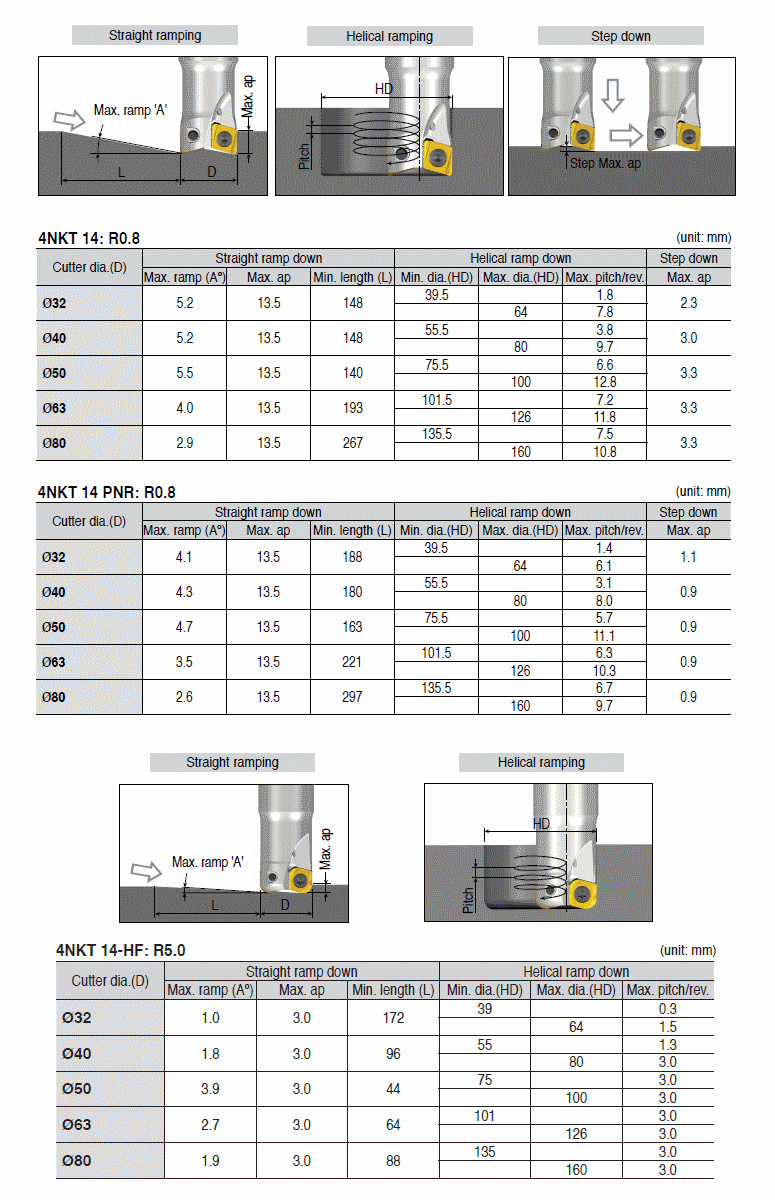

90° Modular end mills with T-FLEXTEC adaptation & unique four high positive helical cutting edges of double-sided 4NKT 14 inserts & high ramping capability

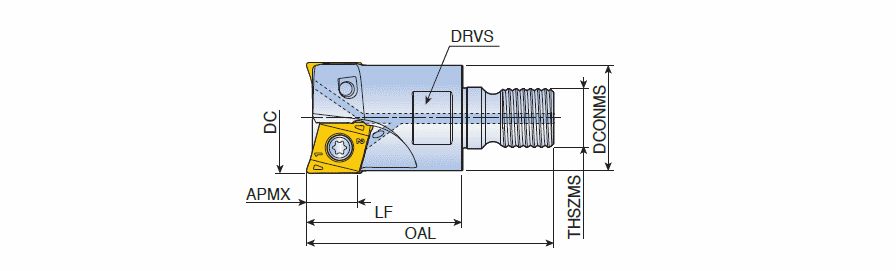

| Cutting Diameter (DC/DCX) | 32 mm | Master Insert Identification (MIID) | 4NKT 140708R-M |
| Cutting Diameter (DC) | 32 mm | Body Material | Steel |
| Cutting Item Count (CICT) | 2 | Application | | Facing | Helical Interpolation | High Feed Milling | Profiling | Rampdown | Shouldering | Slotting | Step down machining | |
| Depth of Cut Maximum (APMX) | 13.8 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 29 mm | Unit | M |
| Overall Length (OAL) | 13.8 mm |
Product Features
| Family Description | 90° Modular end mills with T-FLEXTEC adaptation & unique four high positive helical cutting edges of double-sided 4NKT 14 inserts & high ramping capability | FamilyName | 4N TE90-M-14 |
| Remarks | Cutter body for 4NKT 140750R HF insert should be modified with body corner radius 5.0 mm Matched with T FLEXTEC holder | BrandName | Taegutec |
| COO | S.KOREA |
Shipping Info
Weight per item
0.3100
Name
Indexable Face Mills
FamilyName
4N TE90-M-14
BrandName
Taegutec
