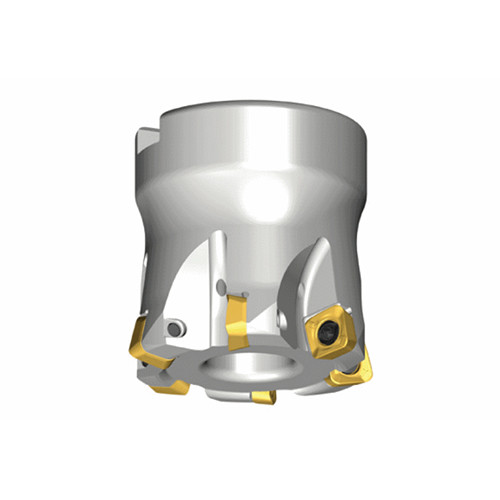

TFMSB 663-22R-09
High feed face mills with positive SBMT 09 inserts of four cutting edges in max. ap 1.2 mm

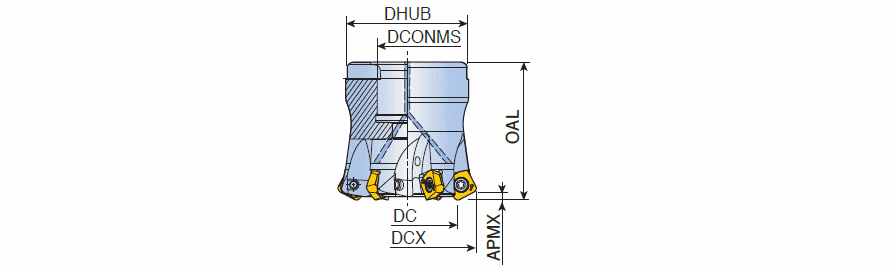

| Cutting Diameter (DC/DCX) | 48.4 mm | Master Insert Identification (MIID) | SBMT 090415R-M |
| Cutting Diameter (DC) | 63 mm | Body Material | Steel |
| Cutting Item Count (CICT) | 6 | Application | | Facing | Helical Interpolation | High Feed Milling | Profiling | Rampdown | |
| Depth of Cut Maximum (APMX) | 1.2 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 22 mm | Unit | M |
| Overall Length (OAL) | 50 mm |
Product Features
| Family Description | High feed face mills with positive SBMT 09 inserts of four cutting edges in max. ap 1.2 mm | FamilyName | TFMSB-R-09 |
| Remarks | Mounting bolt with coolant through hole is available on request (ordering example: SH M10x1.5x30 C) | BrandName | Taegutec |
| COO | S.KOREA |
Shipping Info
Weight per item
1.3550
Name
Indexable Face Mills
FamilyName
TFMSB-R-09
BrandName
Taegutec
