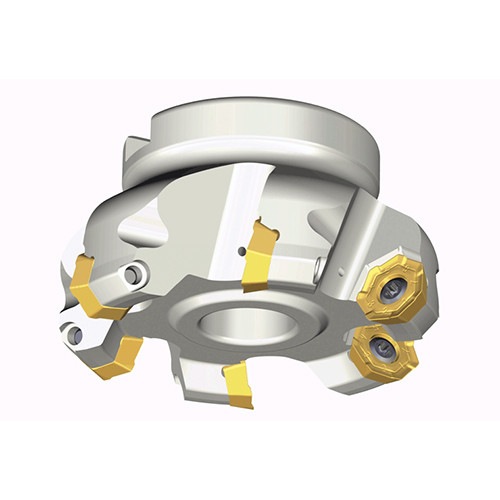

7S-F45 780-27R-06
45° Face mills with positive 7 cutting edged inserts & less cutting forces for small machines
| Cutting Diameter (DC/DCX) | 80 mm | Master Insert Identification (MIID) | 7EMT 0604 AETR-M |
| Cutting Diameter (DC) | 88.5 mm | Body Material | Steel |
| Cutting Item Count (CICT) | 7 | Application | | Facing | Helical Interpolation | Rampdown | |
| Depth of Cut Maximum (APMX) | 3.2 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 27 mm | Unit | M |
| Overall Length (OAL) | 50 mm |
Product Features
| Family Description | 45° Face mills with positive 7 cutting edged inserts & less cutting forces for small machines | FamilyName | 7S-F45-R-06 |
| Remarks | Mounting bolt with coolant through hole is available on request (ordering example: SH M8X1.25X30 C) | BrandName | Taegutec |
| COO | S.KOREA |
Shipping Info
Weight per item
1.8000
Name
Indexable Face Mills
FamilyName
7S-F45-R-06
BrandName
Taegutec
