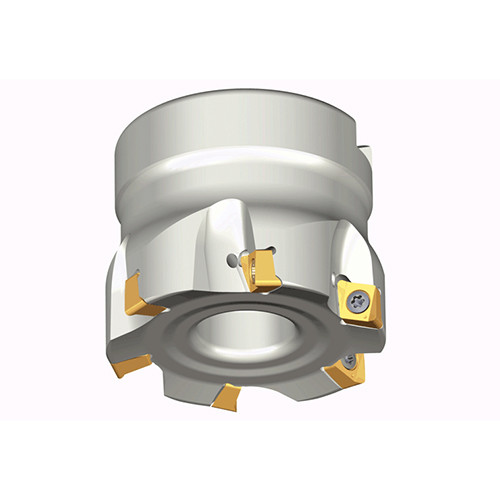

4N TF90-750-22R-06
90° Face mills with unique 4 high positive helical cutting edges of double-sided 4NK(H)T 06 inserts

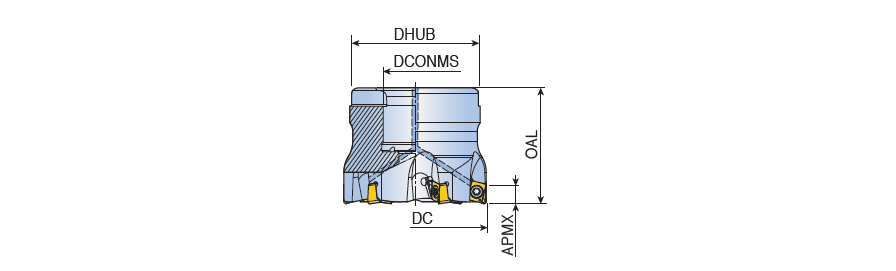

| Cutting Diameter (DC) | 50 mm | Master Insert Identification (MIID) | 4NKT 060308R-M |
| Cutting Item Count (CICT) | 7 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 6 mm | Application | | Facing | Helical Interpolation | High Feed Milling | Profiling | Rampdown | Shouldering | Slotting | Step down machining | |
| Connection Diameter Machine Side (DCONMS) | 22 mm | Measurement Type | Metric |
| Overall Length (OAL) | 40 mm | Unit | M |
Product Features
| Family Description | 90° Face mills with unique 4 high positive helical cutting edges of double-sided 4NK(H)T 06 inserts | FamilyName | 4N TF90-R-06 |
| Remarks | Table's ap and L refer to 08R insert Cutter body for '4NKT 060320R HF' and '4NHT 060320R F' inserts should be modified with body corner radius 2.0 mm Mounting bolt with coolant through hole is available on request (ordering example: SH M10x1.5x30 C) | BrandName | Taegutec |
| COO | S.KOREA |
Shipping Info
Weight per item
0.9550
Name
Indexable Face Mills
FamilyName
4N TF90-R-06
BrandName
Taegutec
