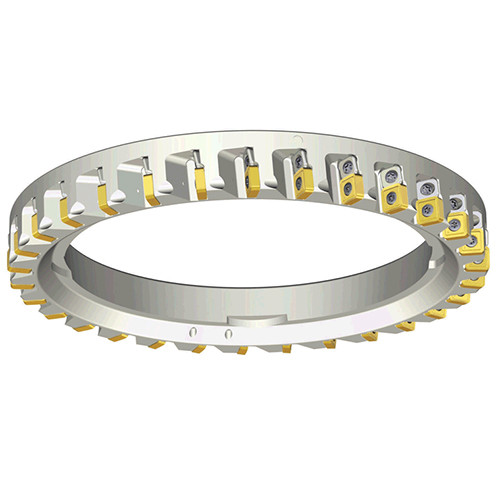

TFM90SNS 32400-12-QC

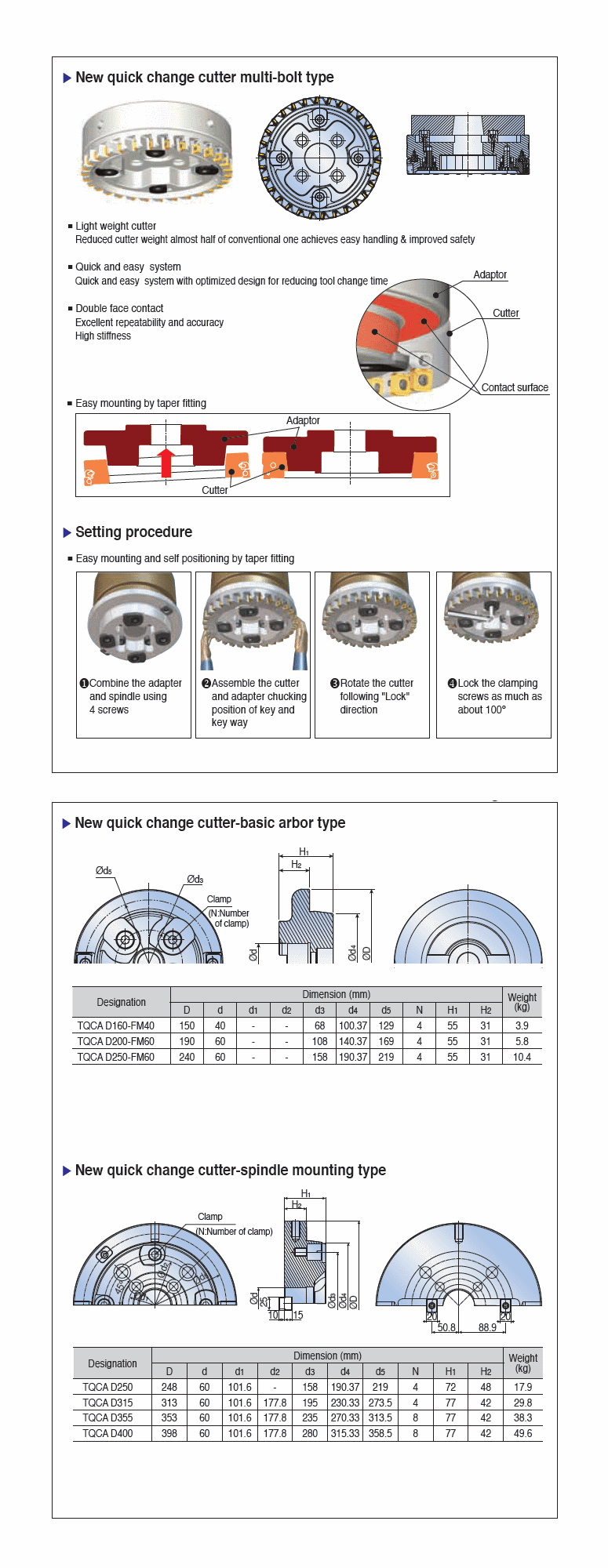

Quick change system cutters with adjustable pockets and precision ground SN 12 inserts for cast irons finishing

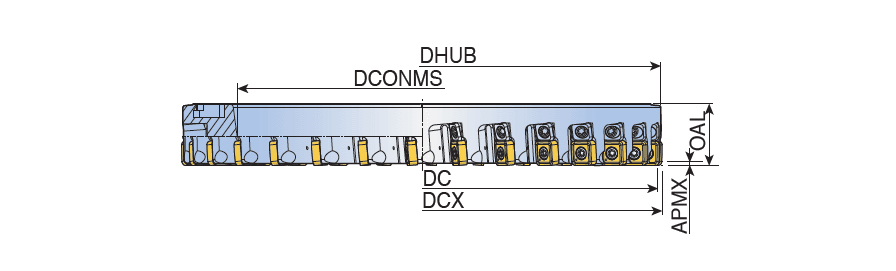

| Cutting Diameter (DC) | 400 mm | Body Material | Steel |
| Cutting Item Count (CICT) | 32 | Application | | Facing | |
| Depth of Cut Maximum (APMX) | 1 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 315.33 mm | Unit | M |
| Overall Length (OAL) | 38 mm |
Product Features
| Family Description | Quick change system cutters with adjustable pockets and precision ground SN 12 inserts for cast irons finishing | FamilyName | TFM90SNS-12-QC |
| Remarks | Recommend to very stable machining condition at cast iron & steel | BrandName | Taegutec |
| COO | S.KOREA |
Shipping Info
Weight per item
0.0000
Name
Indexable Face Mills
FamilyName
TFM90SNS-12-QC
BrandName
Taegutec
