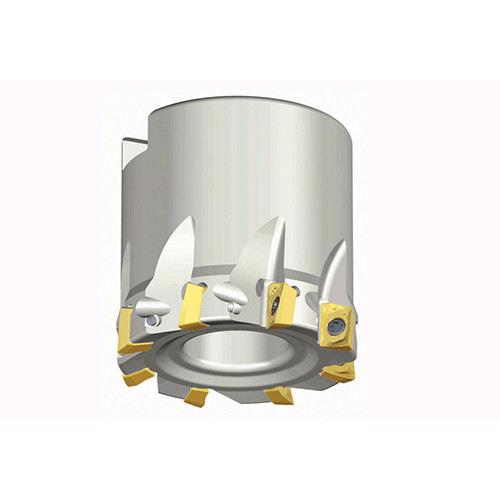

TFM90AX 1040-16R-06
90° Face mills with high positive two helical cutting edges inserts of AXMT 06

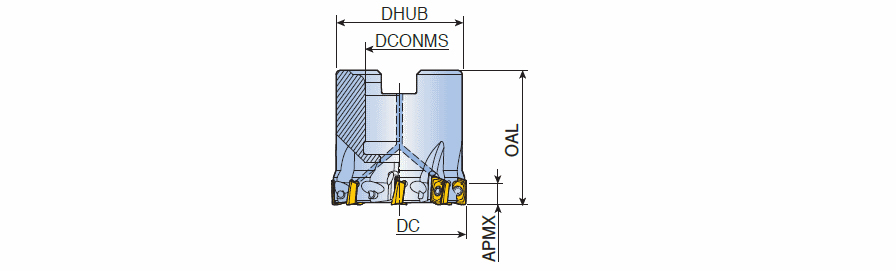

| Cutting Diameter (DC) | 40 mm | Master Insert Identification (MIID) | AXMT 0602 PER-EM |
| Cutting Item Count (CICT) | 10 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 5.5 mm | Application | | Facing | Helical Interpolation | High Feed Milling | Profiling | Rampdown | Shouldering | Slotting | |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Measurement Type | Metric |
| Overall Length (OAL) | 40 mm | Unit | M |
Product Features
| Family Description | 90° Face mills with high positive two helical cutting edges inserts of AXMT 06 | FamilyName | TFM90AX-R-06 |
| Remarks | Mounting bolt with coolant through hole is available on request (ordering example: SH M10x1.5x30 C) | BrandName | Taegutec |
| COO | S.KOREA |
Shipping Info
Weight per item
0.8070
Name
Indexable Face Mills
FamilyName
TFM90AX-R-06
BrandName
Taegutec
