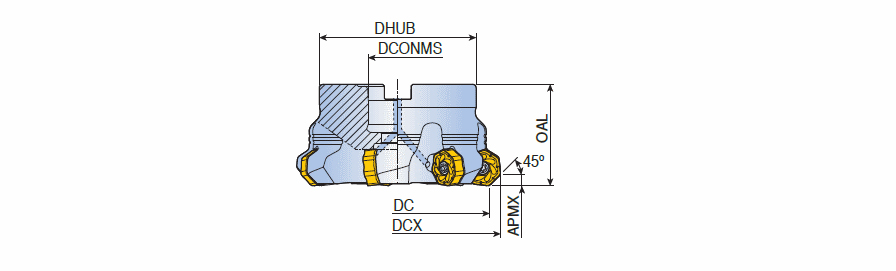

| Cutting Diameter (DC/DCX) | 80 mm | Master Insert Identification (MIID) | XNHU 0605 ANN-MM |
| Cutting Diameter (DC) | 89.1 mm | Body Material | Steel |
| Cutting Item Count (CICT) | 6 | Application | | Facing | |
| Depth of Cut Maximum (APMX) | 3.5 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 27 mm | Unit | M |
| Overall Length (OAL) | 50 mm |
Product Features

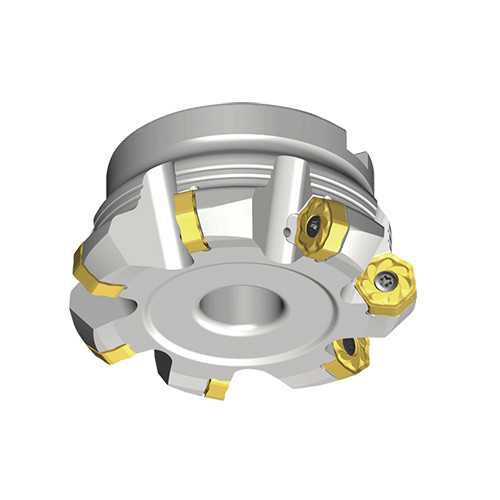

| Family Description | 45° Face mills with double-sided economical 14 cutting edges inserts of XN 06 for general applications | FamilyName | 14D-F45XN-R-06 |
| Remarks | Mounting bolt with coolant through hole is available on request (ordering example: SH M10x1.5x30 C) | BrandName | Taegutec |
| COO | S.KOREA |
Shipping Info
Weight per item
1.9300
Name
Indexable Face Mills
FamilyName
14D-F45XN-R-06
BrandName
Taegutec
