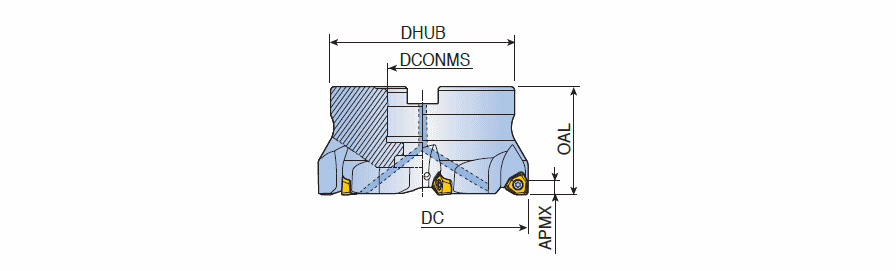

| Cutting Diameter (DC/DCX) | 50 mm | Master Insert Identification (MIID) | 6NGU 090508R-M |
| Cutting Diameter (DC) | 50 mm | Body Material | Steel |
| Cutting Item Count (CICT) | 4 | Application | | Facing | Shouldering | Slotting | |
| Depth of Cut Maximum (APMX) | 9.2 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 22 mm | Unit | M |
| Overall Length (OAL) | 40 mm |
Product Features

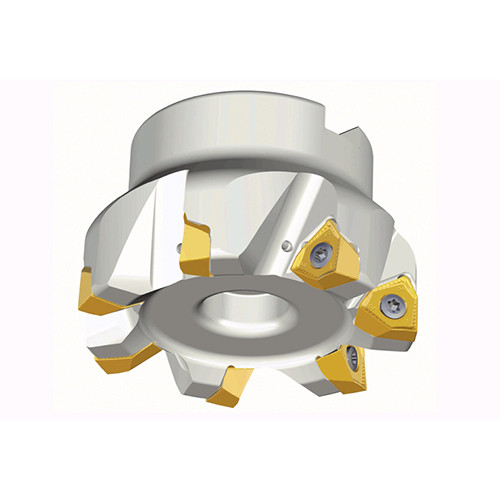

| Family Description | 90° Face mills with positive six cutting edges of double sided 6NGU 06/09 inserts for cost effective machining | FamilyName | 6N TF90-R-06/09 |
| Remarks | Mounting bolt with coolant through hole is available on request (ordering example: SH M10x1.5x30 C) | BrandName | Taegutec |
| COO | S.KOREA |
Shipping Info
Weight per item
0.8400
Name
Indexable Face Mills
FamilyName
6N TF90-R-06/09
BrandName
Taegutec
