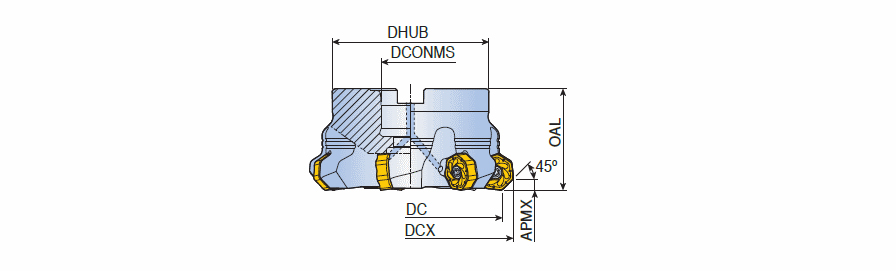

| Cutting Diameter (DC/DCX) | 63 mm | Master Insert Identification (MIID) | XNHU 0906 ANTN-MM |
| Cutting Diameter (DC) | 74.9 mm | Body Material | Steel |
| Cutting Item Count (CICT) | 5 | Application | | Facing | |
| Depth of Cut Maximum (APMX) | 5 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 22 mm | Unit | M |
| Overall Length (OAL) | 50 mm |
Product Features
| Family Description | 45° Face mills with double-sided economical 14 cutting edges inserts of XN 09 for roughing of steels & cast irons | FamilyName | 14D-F45XN-R-09 |
| Remarks | Mounting bolt with coolant through hole is available on request (ordering example: SH M10x1.5x30 C) | BrandName | Taegutec |
| COO | S.KOREA |
Shipping Info
Weight per item
1.2900
Name

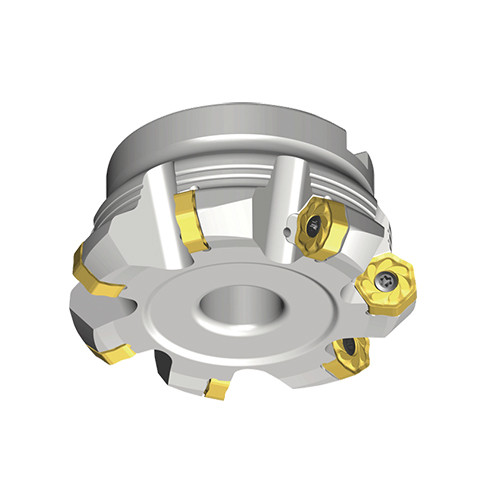

Indexable Face Mills
FamilyName
14D-F45XN-R-09
BrandName
Taegutec
