TFMRY 8160H-40R-16
Carbide shim type face mills with strong positive round inserts of RYM(H)X for general profiling & general machining

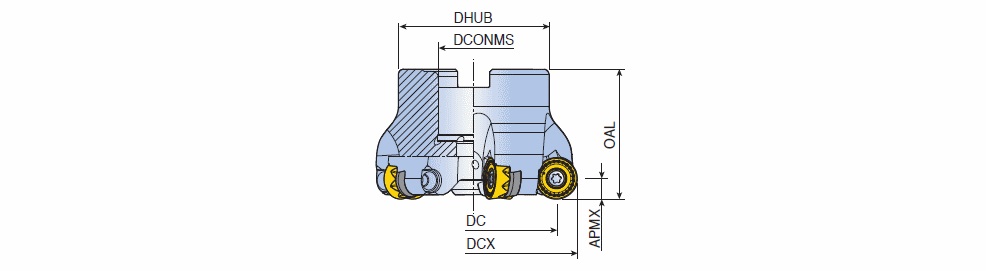

| Cutting Diameter (DC/DCX) | 160 mm | Hub Diameter (DHUB) | 110 mm |
| Cutting Diameter (DC) | 144 mm | Master Insert Identification (MIID) | RYMX 1606-M |
| Cutting Diameter Maximum (DCX) | 160 mm | Body Material | Steel |
| Cutting Item Count (CICT) | 8 | Application | | Facing | Helical Interpolation | Profiling | Rampdown | |
| Depth of Cut Maximum (APMX) | 8 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 40 mm | Unit | M |
| Overall Length (OAL) | 8 mm |
Product Features
| Family Description | Carbide shim type face mills with strong positive round inserts of RYM(H)X for general profiling & general machining | FamilyName | TFMRY H-R-16/20 |
| Remarks | Mounting bolt with coolant through hole is available on request (ordering example: SH M10x1.5x30 C) | BrandName | Taegutec |
| COO | S.KOREA |
Shipping Info
Weight per item
4.3900
Name
Indexable Face Mills
FamilyName
TFMRY H-R-16/20
BrandName
Taegutec
