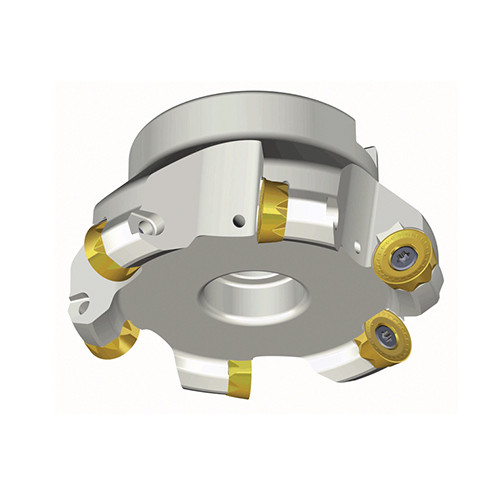

TFMRY 7125-40R-16
Face mills with strong positive round inserts of RYM(H)X for general profiling & general machining

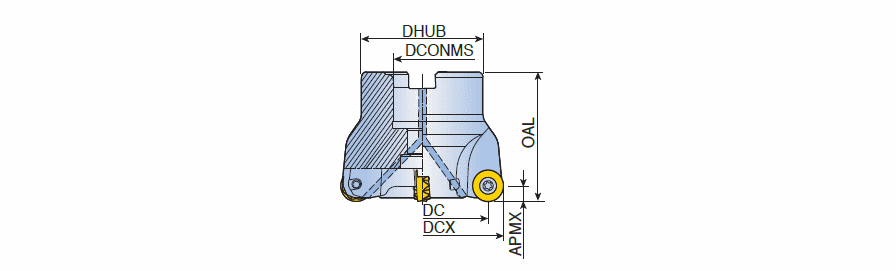

| Cutting Diameter (DC) | 125 mm | Master Insert Identification (MIID) | RYMX 1606-M |
| Cutting Item Count (CICT) | 7 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 8 mm | Application | | Facing | Helical Interpolation | Profiling | Rampdown | |
| Connection Diameter Machine Side (DCONMS) | 40 mm | Measurement Type | Metric |
| Overall Length (OAL) | 63 mm | Unit | M |
Product Features
| Family Description | Face mills with strong positive round inserts of RYM(H)X for general profiling & general machining | FamilyName | TFMRY-R-08/10/12/16/20 |
| Remarks | Mounting bolt with coolant through hole is available on request (ordering example: SH M10x1.5x30 C) | BrandName | Taegutec |
| COO | S.KOREA |
Shipping Info
Weight per item
3.5600
Name
Indexable Face Mills
FamilyName
TFMRY-R-08/10/12/16/20
BrandName
Taegutec
