TFM90SNS 12100-32R-12

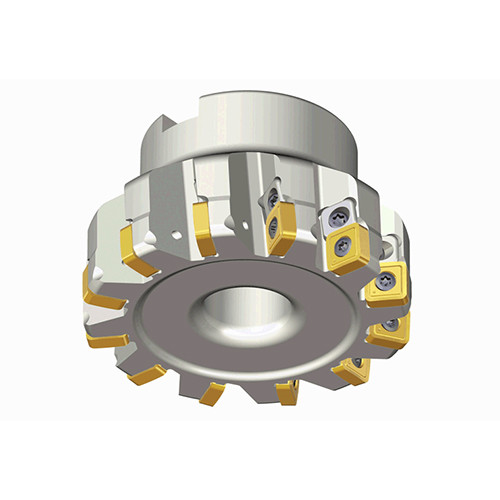

90° Face mills with adjustable pockets and precision ground wiper SN 12 inserts for finishing of steels and cast irons

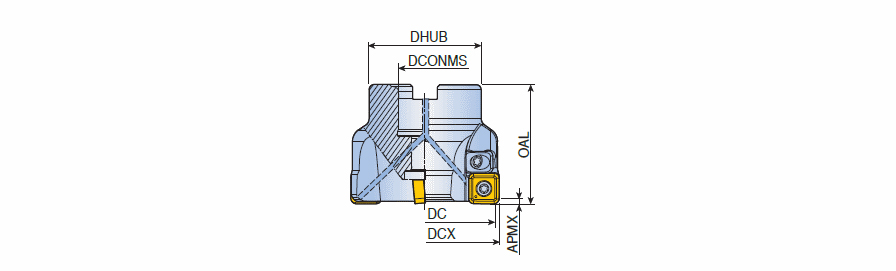

| Cutting Diameter (DC) | 100 mm | Master Insert Identification (MIID) | SNEX 1204-W |
| Cutting Item Count (CICT) | 12 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 1 mm | Application | | Facing | |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Measurement Type | Metric |
| Overall Length (OAL) | 63 mm | Unit | M |
Product Features
| Family Description | 90° Face mills with adjustable pockets and precision ground wiper SN 12 inserts for finishing of steels and cast irons | FamilyName | TFM90SNS-R-12 |
| Remarks | Recommend to do very stable machining condition at cast iron & steel for better finishing Mounting bolt with coolant through hole is available on request (ordering example: SH M10x1.5x30 C) | BrandName | Taegutec |
| COO | S.KOREA |
Shipping Info
Weight per item
2.5000
Name
Indexable Face Mills
FamilyName
TFM90SNS-R-12
BrandName
Taegutec
