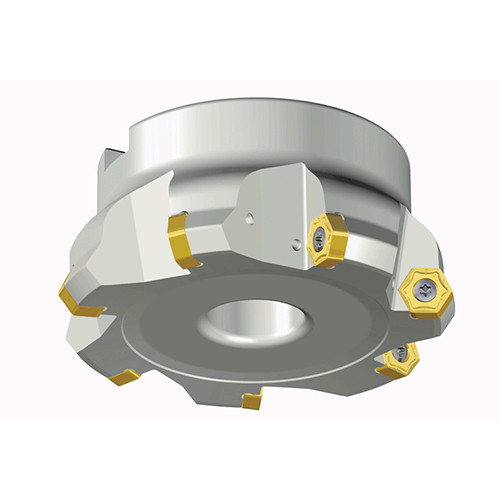

TFM55AHNS 12100-32R-05
55 face mills with 12 cutting edges inserts of double sides & screw clamping type for general milling in max. ap 5.0 mm

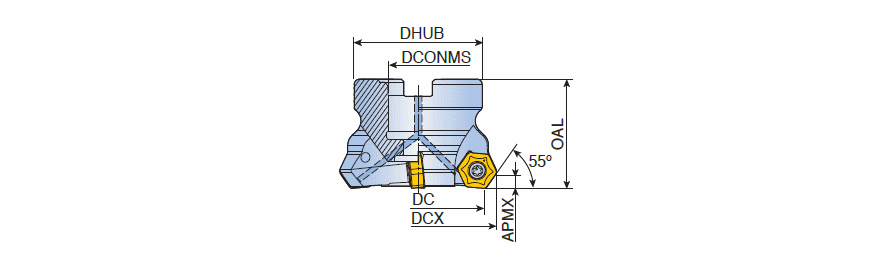

| Cutting Diameter (DC) | 108.16 mm | Master Insert Identification (MIID) | HNCX 050410-MM |
| Cutting Item Count (CICT) | 12 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 5 mm | Application | | Facing | |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Measurement Type | Metric |
| Overall Length (OAL) | 50 mm | Unit | M |
Product Features
| Family Description | 55 face mills with 12 cutting edges inserts of double sides & screw clamping type for general milling in max. ap 5.0 mm | FamilyName | TFM55AHNS-R-05 |
| Remarks | Mounting bolt with coolant through hole is available on request (ordering example: SH M10x1.5x30 C) | BrandName | Taegutec |
| COO | S.KOREA |
Shipping Info
Weight per item
2.6700
Name
Indexable Face Mills
FamilyName
TFM55AHNS-R-05
BrandName
Taegutec
