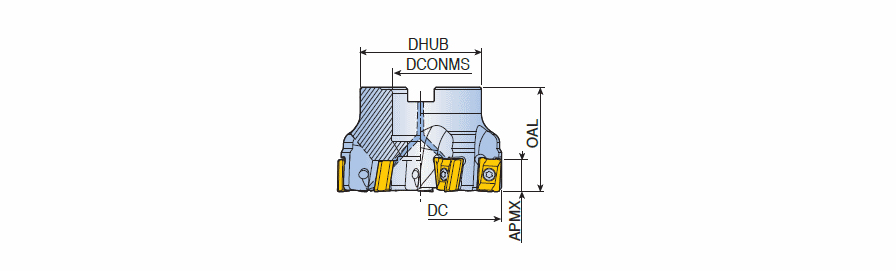

| Cutting Diameter (DC/DCX) | 80 mm | Master Insert Identification (MIID) | ANHX 160708R-M |
| Cutting Diameter (DC) | 80 mm | Body Material | Steel |
| Cutting Item Count (CICT) | 7 | Application | | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | |
| Depth of Cut Maximum (APMX) | 15 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 27 mm | Unit | M |
| Overall Length (OAL) | 50 mm |
Product Features

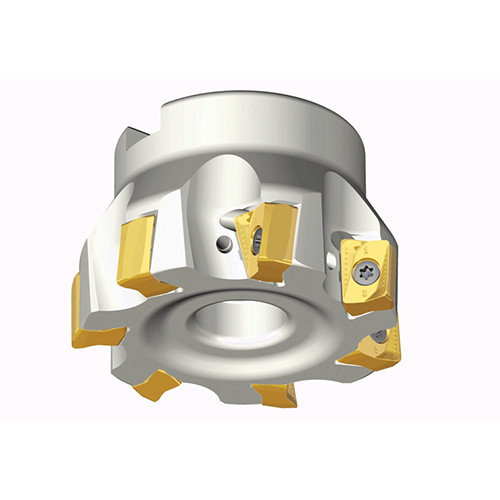

| Family Description | 90° Face mills with 4 helical cutting edges of double-sided inserts AN 16 | FamilyName | TFM90AN-R-16 |
| Remarks | Mounting bolt with coolant through hole is available on request (ordering example: SH M10x1.5x30 C) | BrandName | Taegutec |
| COO | S.KOREA |
Shipping Info
Weight per item
1.5800
Name
Indexable Face Mills
FamilyName
TFM90AN-R-16
BrandName
Taegutec
