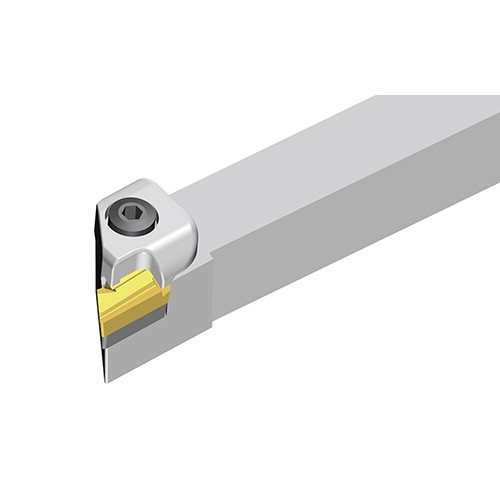

CKJNR 4040 R16
Top clamp holders with 93° approach angle for negative 55° Parallelogram inserts

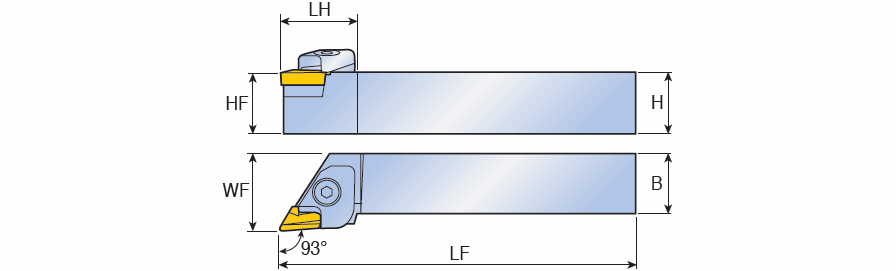

| Shank Height (H) | 40 mm | Application | | Ext 93° App 55°Diamond | |
| Shank Width (B) | 40 mm | Body Material | Steel |
| Head Length (LH) | 33.3 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Right Hand | Unit | M |
Product Features
| Family Description | Top clamp holders with 93° approach angle for negative 55° Parallelogram inserts | FamilyName | CKJNR/L |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
2.3550
Name
General Indexable Turning Tools
FamilyName
CKJNR/L
BrandName
Taegutec
