SDJCR 1212 F07

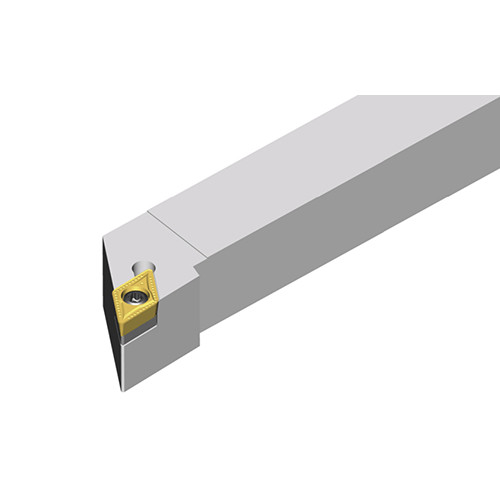

Screw type holders with 93° approach angle for positive 55° Rhombic insert of 7° clearance angle

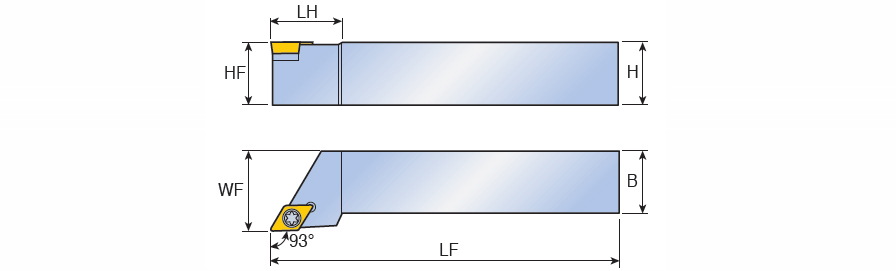

| Shank Height (H) | 12 mm | Application | | Ext 93° App 55°Diamond | |
| Shank Width (B) | 12 mm | Body Material | Steel |
| Head Length (LH) | 15 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Right Hand | Unit | M |
Product Features
| Family Description | Screw type holders with 93° approach angle for positive 55° Rhombic insert of 7° clearance angle | FamilyName | SDJCR/L (Holder) |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.1000
Name
General Indexable Turning Tools
FamilyName
SDJCR/L (Holder)
BrandName
Taegutec
