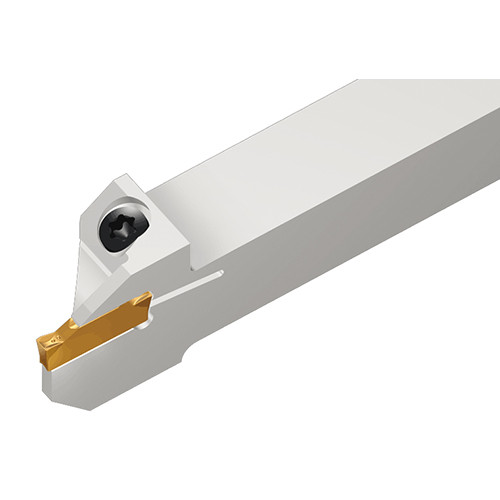

RGER 16-24-2SH
RHINOGROOVE external holders for parting of small dia. solid bar and shallow grooving on swiss type automatic lathes

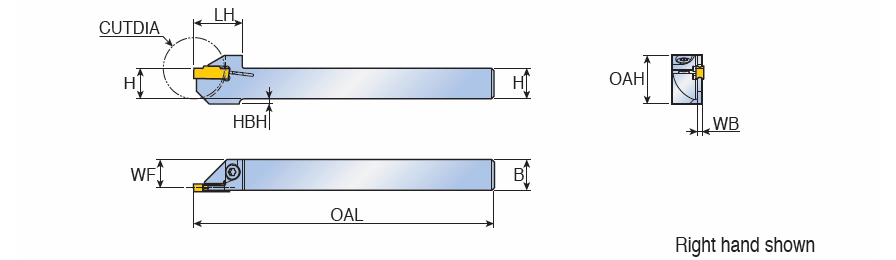

| Shank Height (H) | 16 mm | Overall Length (OAL) | 125 mm |
| Shank Width (B) | 16 mm | Application | | Ext. Grooving | Ext. Grooving & Turning | Ext. Profiling | Parting | |
| Body Width (WB) | 1.8 mm | Body Material | Steel |
| Functional Width (WF) | 15.1 mm | Measurement Type | Metric |
| Head Length (LH) | 19 mm | Unit | M |
Product Features
| Family Description | RHINOGROOVE external holders for parting of small dia. solid bar and shallow grooving on swiss type automatic lathes | FamilyName | RGER/L-SH |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.2600
Name
Groove/Turn Indexable Holders
FamilyName
RGER/L-SH
BrandName
Taegutec
